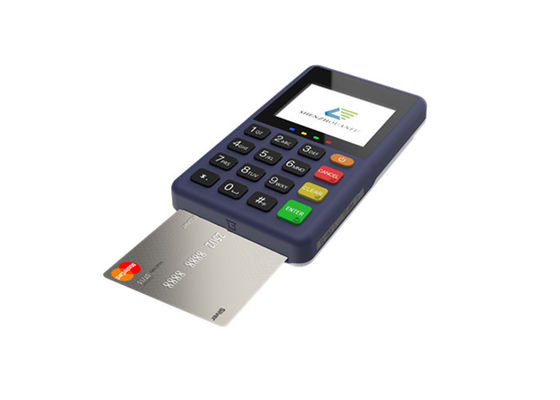

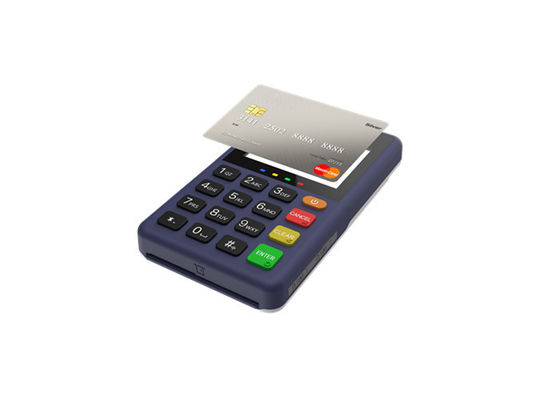

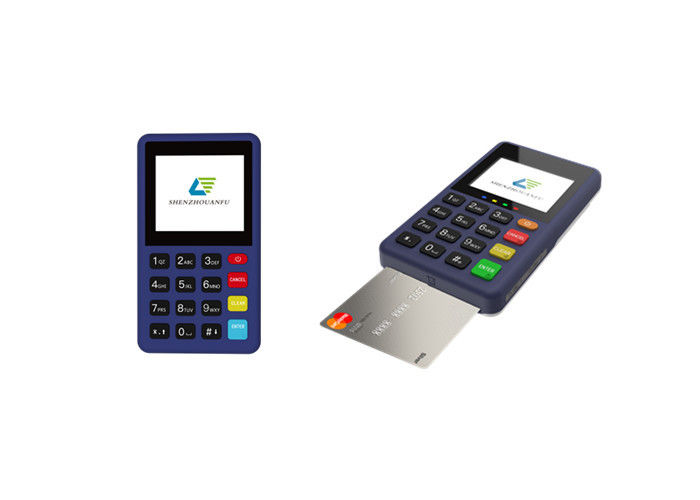

Securely Accept Payments with Our Handheld POS Terminal and Linux 5.4 and RTOS Solutions
Company Profile:
Welcome to Shenzhou Anfu's cutting-edge factory, where innovation and precision engineering converge to shape the future of security technology. Situated in Beijing, our state-of-the-art facility is the epicenter of our operations, dedicated to the design, development, and production of high-tech security SOC chips, modules, and terminal products.
Our factory is equipped with the latest in advanced manufacturing technology and machinery, optimized for efficiency and precision. Staffed by a team of skilled professionals who are experts in their respective fields, we ensure that every product that leaves our facility meets the highest standards of quality and reliability.
At Shenzhou Anfu, we prioritize research and development, investing heavily in cutting-edge technologies and methodologies to stay ahead of the curve. With a focus on innovation and excellence, our factory serves as the cornerstone of our commitment to pushing the boundaries of technological advancement in the security industry.
Moreover, our dedication to quality is evident in our adherence to rigorous certification standards, including national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, and ISO9001:2015 quality management system certification.
Experience the pinnacle of security technology at Shenzhou Anfu's factory. Join us as we revolutionize the security industry one innovation at a time. Welcome to the future of security technology. Welcome to Shenzhou Anfu.
Specification:
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.4" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
Li-ion battery 3.7V/2000mAh |
Card Slots
SIM / SAM |
SIM Card x 2 |
| Keypad |
Numeric x 10
Function x 5
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
Printer charging base(optional) |
| Weight |
160g |
| Dimensions |
123(L) x 70(W) x 17(H) mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
Product Feature
Beijing Shenzhou Anfu Technology Co.,Ltd is a high-tech enterprise engaged in financial payment terminal products, It is committed to product research and development, system integration and technical services in the field of safe payment, providing mobile payment products of international advanced level, offline payment
Advantages
● It supports 4G/3G/2G networking
● It supports the internet sharing function of mobile phone Bluetooth
● It supports handling of magnetic stripe card , contact IC card and non - contact IC card
● It supports NFC payment of mobile phone such as Apple Pay , etc .
● It supports QR code payment of WeChat , Alipay , Quick Pass , etc .
● It supports electronic signature receipt and paperless management
● Configured with camera to support the dual modes of main Scanning and being Scanned
● With attack - detection mechanism , multiple anti - disassembly and self - destruction mechanism
● It meets the latest safety certification standard of UnionPay
● The base has charging function
●The base is a dedicated Bluetooth printer for AF69 products
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
