Product Details:
|
Dimensions: | 123(L) X 70(W) X 17(H) Mm | Model No: | AF69 |
---|---|---|---|
Camera: | Rear Camera:0.3 Million Pixels | Material: | Plastic |
Memory: | Linux:256MB Flash + 128MB RAM RTOS:8MB Flash + 16MB RAM | Connectivity: | Bluetooth, Wi-Fi, 2G/3G/4G |
Payment: | T/T | Lead Time: | 2-7days |
High Light: | Bluetooth wifi Offline POS machine,Wifi Offline POS Machine,Bluetooth Offline POS Machine |

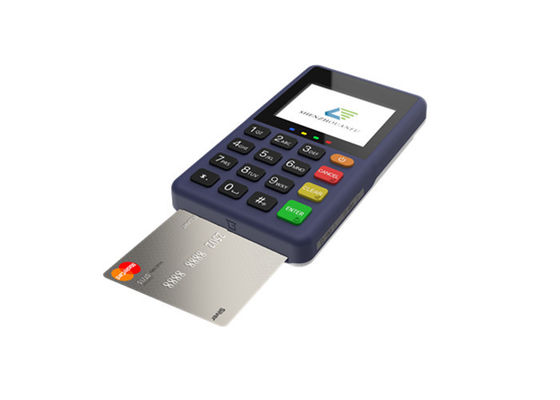

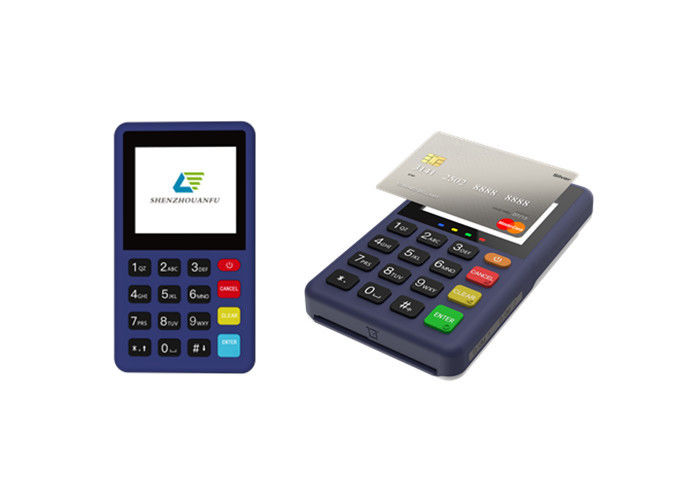

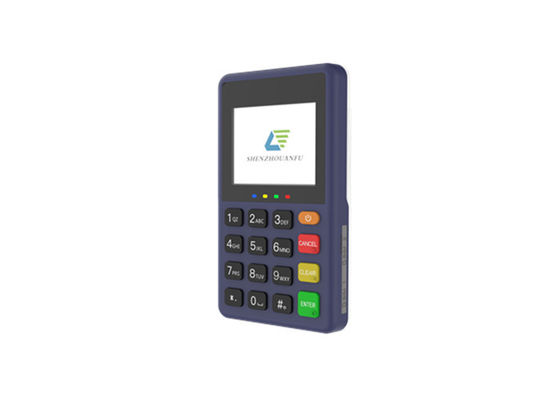

Offline POS machine for manually inputting bank card payment with Bluetooth wifi
Specification:
Operating System | Linux 5.4 RTOS |
Processor | Linux:Cortex-A7 1.2 GHz RTOS:Cortex-A5 500MHz |
Memory | Linux:256MB Flash + 128MB RAM RTOS:8MB Flash + 16MB RAM |
Card Readers | MSR: ISO7810-7813, 3 tracks IC Card: ISO7816 |
NFC Reader | 13.56MHz, ISO/IEC14443 TypeA&B, |
Camera | Rear camera:0.3 million pixels |
Display | 2.4" 320x240 TFT Resistive Touch Screen |
Wireless Communication | Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS) RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
Battery | Li-ion battery 3.7V/2000mAh |
Card Slots SIM / SAM |
SIM Card x 2 |
Keypad | Numeric x 10 Function x 5 Power x 1 |
Audio | 1 Buzzer |
Ports | Linux:1 Type-C USB OTG | USB 2.0 RTOS:11 Type-C | USB 2.0 |
Indicator lights | 4 Work indicator lights |
Adapter | Input: AC 100-240V, 50/60Hz Output: 5V/1A |
Scanning charging base | Printer charging base(optional) |
Weight | 160g |
Dimensions | 123(L) x 70(W) x 17(H) mm |
Environment | Storage temperature: -20°C to 60°C Operating temperature: -10°C to 50°C Humidity: ≤95% |
Certifications | EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass PCI PTS 6.x / TQM / CE |
Company Information
In a digital age where security is paramount, Shenzhou Anfu emerges as the beacon of innovation. Picture a symphony of cutting-edge technology and meticulous craftsmanship, harmonizing to create solutions that redefine the very essence of security.
At Shenzhou Anfu, we don't just provide security solutions – we engineer peace of mind. Our approach is smart, adaptive, and always ahead of the curve. We leverage the latest advancements in SOC chips, modules, and terminal products to craft intelligent solutions that safeguard information in an ever-evolving landscape.
But our brilliance doesn't stop there. We infuse our solutions with a touch of ingenuity, making them not just effective, but intuitive and seamless to use. From smart homes to financial institutions, our products seamlessly integrate into every facet of modern life, elevating security to an art form.
What sets us apart is our commitment to innovation. We don't just follow trends – we set them. With a portfolio boasting 14 independent intellectual property rights, including patents and copyrights, Shenzhou Anfu is the epitome of forward-thinking.
Welcome to Shenzhou Anfu, where security is not just a necessity – it's an experience. Join us in shaping a smarter, safer future.
Beijing Shenzhou Anfu Technology Co.,Ltd is a high-tech enterprise engaged in financial payment terminal products, It is committed to product research and development, system integration and technical services in the field of safe payment, providing mobile payment products of international advanced level, offline payment
Advantages
● It supports 4G/3G/2G networking
● It supports the internet sharing function of mobile phone Bluetooth
● It supports handling of magnetic stripe card , contact IC card and non - contact IC card
● It supports NFC payment of mobile phone such as Apple Pay , etc .
● It supports QR code payment of WeChat , Alipay , Quick Pass , etc .
● It supports electronic signature receipt and paperless management
● Configured with camera to support the dual modes of main Scanning and being Scanned
● With attack - detection mechanism , multiple anti - disassembly and self - destruction mechanism
● It meets the latest safety certification standard of UnionPay
● The base has charging function
●The base is a dedicated Bluetooth printer for AF69 products
Products Name | MOQ(in the last 12month) |
POS Device | 5 Pieces |
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
