Product Details:
|
Bluetooth: | Bluetooth 3.0 / 4.0 | Screen Size: | 2.4" 320x240 TFT |
---|---|---|---|
Color: | Navy | Buttons: | Power On/Off Button |
Model: | Mini POS Terminal | Interface: | Micro-USB |
Model No: | AF69 | Indicator: | LED Status Indicator |
High Light: | Bank Card Reader mini POS terminal,EMV mini POS terminal,Credit Card Machines mini POS terminal |

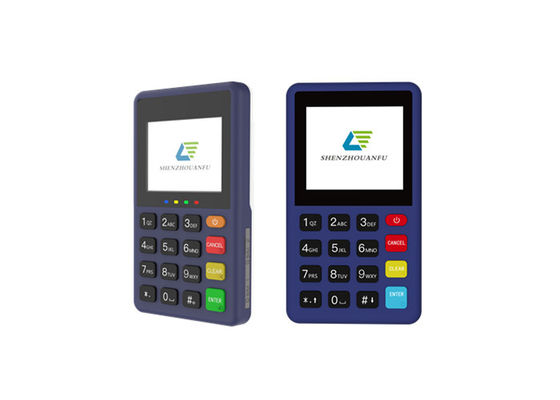

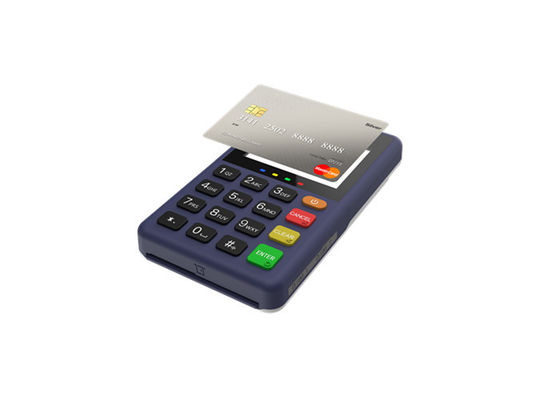

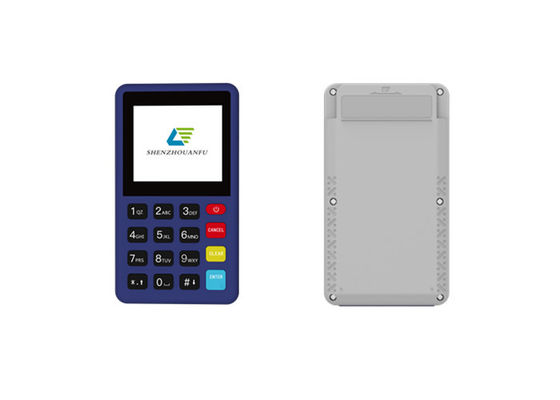

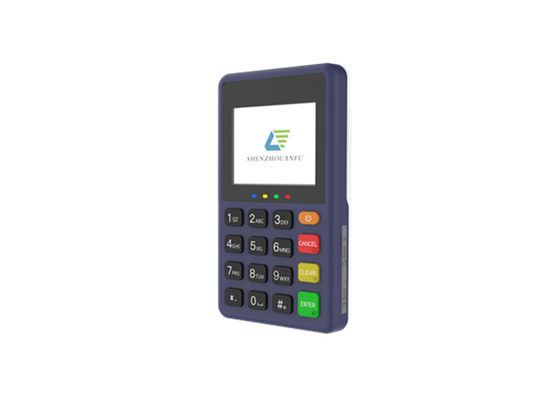

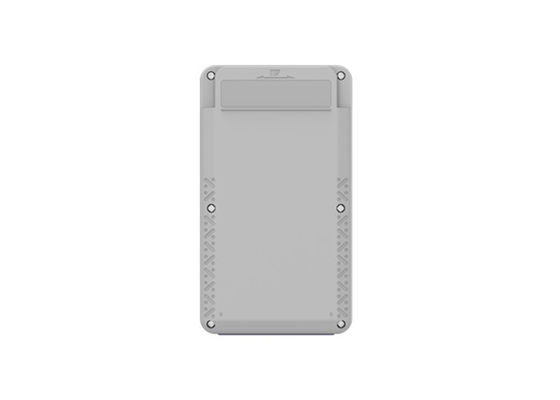

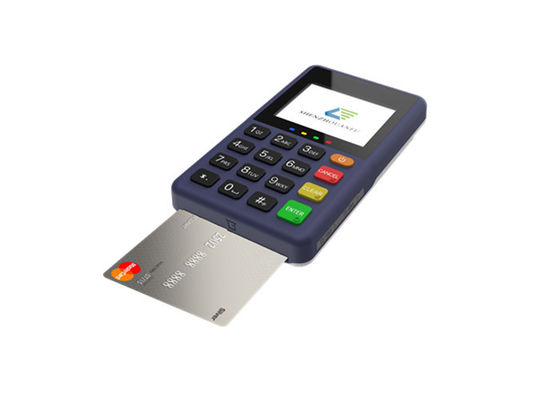

EMV High Performance Wireless mini POS Terminals Credit Card Machines with Bank Card Reader Mpos
Specification:
Operating System | Linux 5.4 RTOS |
Processor | Linux:Cortex-A7 1.2 GHz RTOS:Cortex-A5 500MHz |
Memory | Linux:256MB Flash + 128MB RAM RTOS:8MB Flash + 16MB RAM |
Card Readers | MSR: ISO7810-7813, 3 tracks IC Card: ISO7816 |
NFC Reader | 13.56MHz, ISO/IEC14443 TypeA&B, |
Camera | Rear camera:0.3 million pixels |
Display | 2.4" 320x240 TFT Resistive Touch Screen |
Wireless Communication | Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS) RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
Battery | Li-ion battery 3.7V/2000mAh |
Card Slots SIM / SAM |
SIM Card x 2 |
Keypad | Numeric x 10 Function x 5 Power x 1 |
Audio | 1 Buzzer |
Ports | Linux:1 Type-C USB OTG | USB 2.0 RTOS:11 Type-C | USB 2.0 |
Indicator lights | 4 Work indicator lights |
Adapter | Input: AC 100-240V, 50/60Hz Output: 5V/1A |
Scanning charging base | Printer charging base(optional) |
Weight | 160g |
Dimensions | 123(L) x 70(W) x 17(H) mm |
Environment | Storage temperature: -20°C to 60°C Operating temperature: -10°C to 50°C Humidity: ≤95% |
Certifications | EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass PCI PTS 6.x / TQM / CE |
Company Information
In the heart of bustling Beijing, amidst the gleaming skyscrapers and labyrinthine streets, there exists a company unlike any other. At the helm of this innovative enterprise stands Anfu, a visionary leader with a passion for security and technology.
Anfu's journey began in the humblest of settings, where their insatiable curiosity and relentless drive propelled them into the world of cybersecurity. With each challenge they encountered, Anfu emerged stronger, honing their skills in chip design, product development, and sales.
But what sets Anfu apart is not just their technical prowess, but their unwavering commitment to excellence. When faced with obstacles, Anfu doesn't just find solutions – they redefine the playing field. It's this tenacity that has earned them the respect and admiration of colleagues and competitors alike.
As the founder of Beijing Shenzhou Anfu Company, Anfu has cultivated a culture of innovation and collaboration. They believe that true success lies not in individual achievements, but in the collective pursuit of greatness.
Under Anfu's leadership, Shenzhou Anfu has become a beacon of innovation in the world of security SOC chips and modules. Their products are not just cutting-edge – they're game-changers, setting new standards for performance and reliability.
But perhaps Anfu's greatest accomplishment lies in their ability to inspire others. Whether mentoring young engineers or forging partnerships with industry giants, Anfu's passion for excellence is contagious, igniting a spark of innovation wherever they go.
In the ever-evolving landscape of technology, one thing remains constant: Anfu's unwavering dedication to pushing the boundaries of what's possible. And as they continue to chart new territory and shape the future of security, one thing is certain – the world is safer and more secure because of Anfu's vision and leadership.
Beijing Shenzhou Anfu Technology Co.,Ltd is a high-tech enterprise engaged in financial payment terminal products, It is committed to product research and development, system integration and technical services in the field of safe payment, providing mobile payment products of international advanced level, offline payment
Advantages
● It supports 4G/3G/2G networking
● It supports the internet sharing function of mobile phone Bluetooth
● It supports handling of magnetic stripe card , contact IC card and non - contact IC card
● It supports NFC payment of mobile phone such as Apple Pay , etc .
● It supports QR code payment of WeChat , Alipay , Quick Pass , etc .
● It supports electronic signature receipt and paperless management
● Configured with camera to support the dual modes of main Scanning and being Scanned
● With attack - detection mechanism , multiple anti - disassembly and self - destruction mechanism
● It meets the latest safety certification standard of UnionPay
● The base has charging function
●The base is a dedicated Bluetooth printer for AF69 products
Products Name | MOQ(in the last 12month) |
POS Device | 5 Pieces |
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
