Product Details:
|
Colour: | Navy Customized | Warranty: | 1 Year |
---|---|---|---|
Indicator: | LED Status Indicator | Operating System: | RTOS |
Communication Method: | Wifi,GPRS,4G | Card Reader: | Supports IC And Mangetic Card Reader |
Software: | POS Software | Type: | Barcoder |
High Light: | Supermarket Touch Screen Terminal Systems,Swiping card Touch Screen Terminal Systems,4g Touch Screen Terminal Systems |

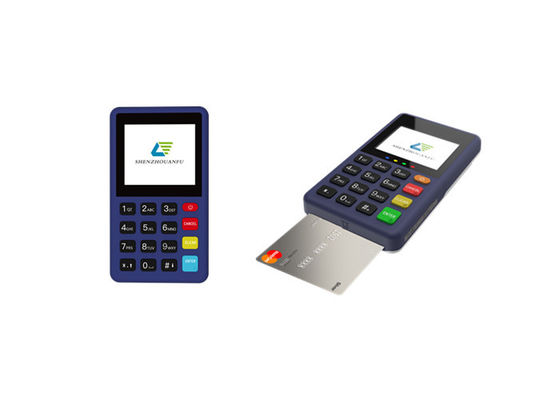

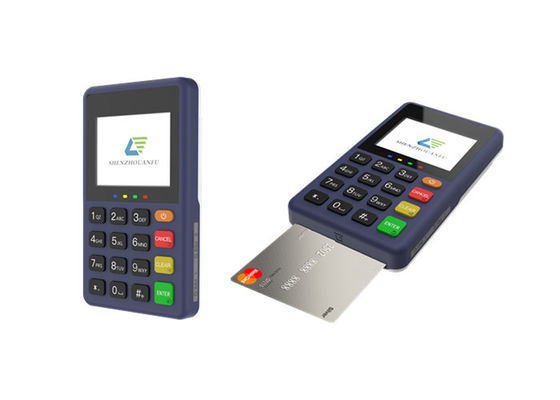

Wholesale 4g Mini Touch Screen Terminal Systems Swiping card Handheld Pos for Supermarket
Specification:
Operating System | Linux 5.4 RTOS |
Processor | Linux:Cortex-A7 1.2 GHz RTOS:Cortex-A5 500MHz |
Memory | Linux:256MB Flash + 128MB RAM RTOS:8MB Flash + 16MB RAM |
Card Readers | MSR: ISO7810-7813, 3 tracks IC Card: ISO7816 |
NFC Reader | 13.56MHz, ISO/IEC14443 TypeA&B, |
Camera | Rear camera:0.3 million pixels |
Display | 2.4" 320x240 TFT Resistive Touch Screen |
Wireless Communication | Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS) RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
Battery | Li-ion battery 3.7V/2000mAh |
Card Slots SIM / SAM |
SIM Card x 2 |
Keypad | Numeric x 10 Function x 5 Power x 1 |
Audio | 1 Buzzer |
Ports | Linux:1 Type-C USB OTG | USB 2.0 RTOS:11 Type-C | USB 2.0 |
Indicator lights | 4 Work indicator lights |
Adapter | Input: AC 100-240V, 50/60Hz Output: 5V/1A |
Scanning charging base | Printer charging base(optional) |
Weight | 160g |
Dimensions | 123(L) x 70(W) x 17(H) mm |
Environment | Storage temperature: -20°C to 60°C Operating temperature: -10°C to 50°C Humidity: ≤95% |
Certifications | EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass PCI PTS 6.x / TQM / CE |
Company Information
Anfu is a multifaceted individual with a passion for innovation and a drive for excellence. With a background in security SOC chips and modules, Anfu brings a wealth of expertise to any project or team. Their commitment to quality and attention to detail make them a valuable asset in the design, development, and sales of high-tech security terminal products.
Beyond their professional achievements, Anfu is known for their dedication to continuous learning and growth. They approach challenges with a positive attitude and a willingness to adapt, making them a reliable collaborator in any endeavor. Anfu's blend of technical acumen and creative thinking makes them an invaluable contributor to their field and a respected member of their professional community.
Beijing Shenzhou Anfu Technology Co.,Ltd is a high-tech enterprise engaged in financial payment terminal products, It is committed to product research and development, system integration and technical services in the field of safe payment, providing mobile payment products of international advanced level, offline payment
Advantages
● It supports 4G/3G/2G networking
● It supports the internet sharing function of mobile phone Bluetooth
● It supports handling of magnetic stripe card , contact IC card and non - contact IC card
● It supports NFC payment of mobile phone such as Apple Pay , etc .
● It supports QR code payment of WeChat , Alipay , Quick Pass , etc .
● It supports electronic signature receipt and paperless management
● Configured with camera to support the dual modes of main Scanning and being Scanned
● With attack - detection mechanism , multiple anti - disassembly and self - destruction mechanism
● It meets the latest safety certification standard of UnionPay
● The base has charging function
●The base is a dedicated Bluetooth printer for AF69 products
Products Name | MOQ(in the last 12month) |
POS Device | 5 Pieces |
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
