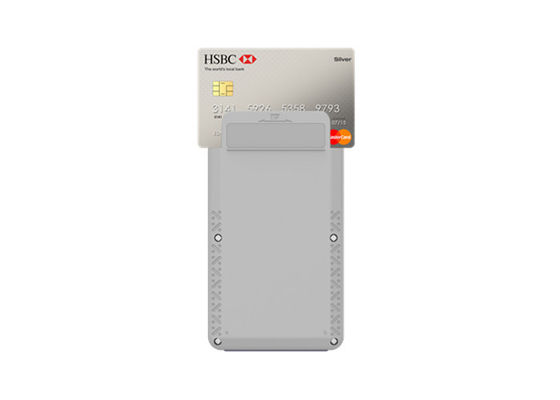

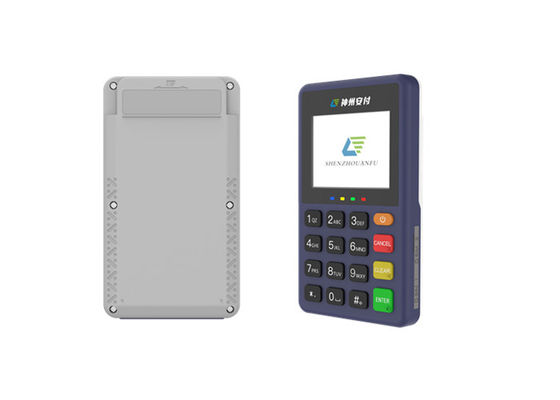

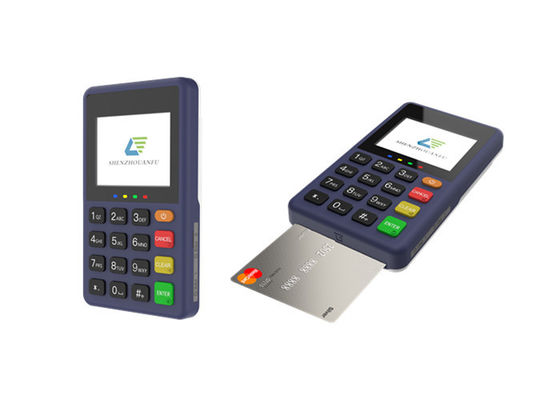

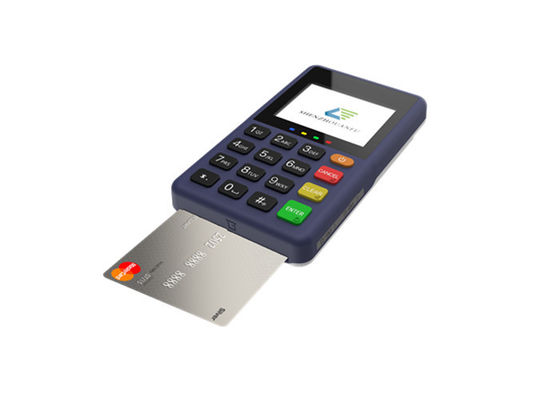

Bluetooth POS Machine with 2.4 Inch Handheld Mini POS Terminal and Linux System
Company Information
I am thrilled to introduce you to Beijing Shenzhou Anfu Company, a leading name in the realm of security solutions. At Shenzhou Anfu, we specialize in the development and distribution of cutting-edge SOC chips, modules, and security terminal products.
Our commitment to excellence is underscored by our array of certifications, including national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, software enterprise certification, and IS9001:2015 quality management system certification. This affirms our dedication to delivering products of the highest quality and reliability.
With a core focus on research and development, we harness the power of a 32-bit embedded high-performance CPU SOC chip design platform to drive innovation in information security and mobile payment sectors. Our diverse product portfolio caters to various industries, including intelligent terminals, smart homes, financial payment systems, and specialized information encryption products.
What sets us apart is our unwavering commitment to independent research and development, resulting in a wealth of intellectual property rights, including patents and software copyrights. Our relentless pursuit of innovation enables us to offer industry-leading security solutions that meet the evolving needs of our customers.
We take great pride in our reputation as a trusted supplier of security chips, modules, and intelligent security terminals. Whether it's in the realms of security, banking and finance, e-government, or convenience services, Shenzhou Anfu stands ready to provide you with reliable and cutting-edge solutions tailored to your specific requirements.
We look forward to the opportunity to partner with you and provide best-in-class security solutions that empower your business to thrive in an ever-changing landscape.
Specification:
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.4" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
Li-ion battery 3.7V/2000mAh |
Card Slots
SIM / SAM |
SIM Card x 2 |
| Keypad |
Numeric x 10
Function x 5
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
Printer charging base(optional) |
| Weight |
160g |
| Dimensions |
123(L) x 70(W) x 17(H) mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
Product Feature
Beijing Shenzhou Anfu Technology Co.,Ltd is a high-tech enterprise engaged in financial payment terminal products, It is committed to product research and development, system integration and technical services in the field of safe payment, providing mobile payment products of international advanced level, offline payment
Advantages
● It supports 4G/3G/2G networking
● It supports the internet sharing function of mobile phone Bluetooth
● It supports handling of magnetic stripe card , contact IC card and non - contact IC card
● It supports NFC payment of mobile phone such as Apple Pay , etc .
● It supports QR code payment of WeChat , Alipay , Quick Pass , etc .
● It supports electronic signature receipt and paperless management
● Configured with camera to support the dual modes of main Scanning and being Scanned
● With attack - detection mechanism , multiple anti - disassembly and self - destruction mechanism
● It meets the latest safety certification standard of UnionPay
● The base has charging function
●The base is a dedicated Bluetooth printer for AF69 products
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
