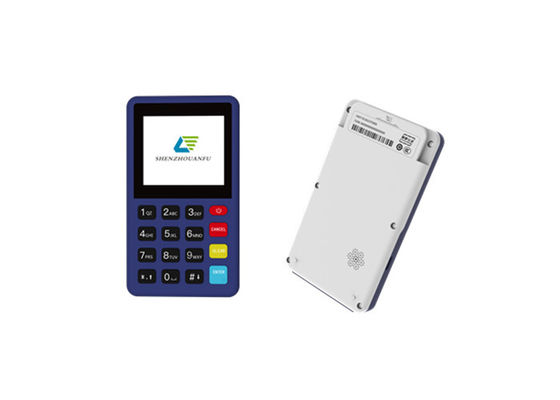

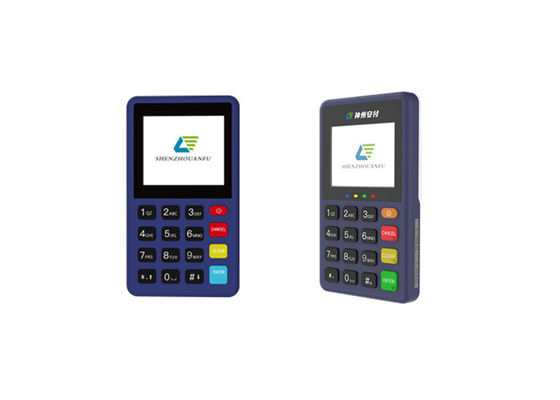

Portable Smart POS Systems Linux POS terminal 4G WiFi NFC built-in printer
Company Information
Welcome to Beijing Shenzhou Anfu Technology Co., Ltd! Founded in 2015, we are a pioneering high-tech enterprise specializing in the design, development, and distribution of cutting-edge modules and security terminal products. Our commitment to innovation and excellence has propelled us to the forefront of the industry.
At Shenzhou Anfu, we pride ourselves on our comprehensive range of certifications, including the prestigious home and board high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, software enterprise certification, and ISO9001:2015 quality management system certification. These accolades underscore our dedication to maintaining the highest standards of quality and reliability in all aspects of our operations.
Located in Tianjin, our state-of-the-art factory spans an impressive 35,000 square meters and features 15 advanced production lines dedicated to manufacturing MPOS systems. With a workforce of over 700 skilled professionals, we have the capacity and expertise to meet the demands of even the most complex projects.
At Shenzhou Anfu, we are committed to driving innovation, delivering superior products, and providing exceptional service to our valued customers. Whether you're seeking cutting-edge solutions for your business or looking to partner with a trusted industry leader, we invite you to explore the possibilities with us. Join us as we continue to push the boundaries of technology and redefine the future of the industry.
Specification:
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.4" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
Li-ion battery 3.7V/2000mAh |

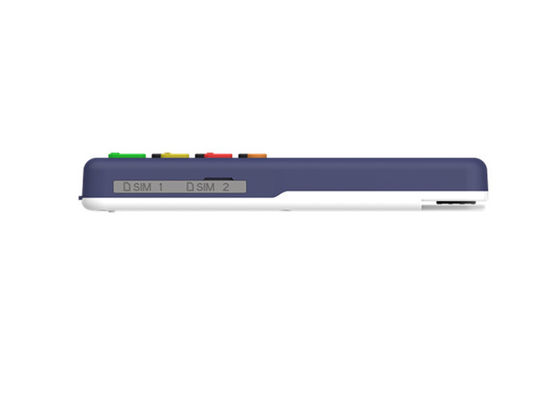

Card Slots
SIM / SAM |
SIM Card x 2 |
| Keypad |
Numeric x 10
Function x 5
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
Printer charging base(optional) |
| Weight |
160g |
| Dimensions |
123(L) x 70(W) x 17(H) mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
Product Feature
Beijing Shenzhou Anfu Technology Co.,Ltd is a high-tech enterprise engaged in financial payment terminal products, It is committed to product research and development, system integration and technical services in the field of safe payment, providing mobile payment products of international advanced level, offline payment
Advantages
● It supports 4G/3G/2G networking
● It supports the internet sharing function of mobile phone Bluetooth

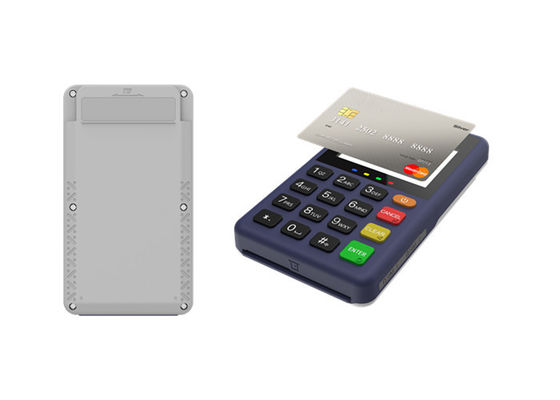

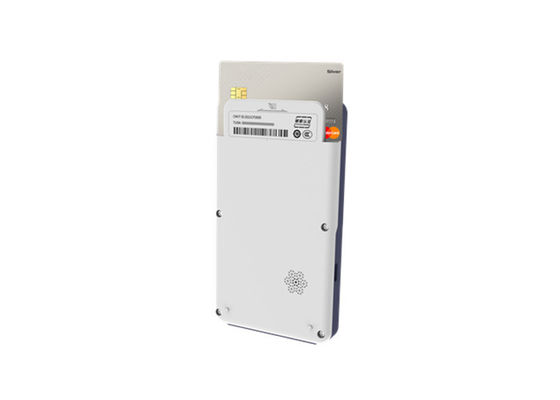

● It supports handling of magnetic stripe card , contact IC card and non - contact IC card
● It supports NFC payment of mobile phone such as Apple Pay , etc .
● It supports QR code payment of WeChat , Alipay , Quick Pass , etc .
● It supports electronic signature receipt and paperless management
● Configured with camera to support the dual modes of main Scanning and being Scanned
● With attack - detection mechanism , multiple anti - disassembly and self - destruction mechanism
● It meets the latest safety certification standard of UnionPay
● The base has charging function
●The base is a dedicated Bluetooth printer for AF69 products
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
