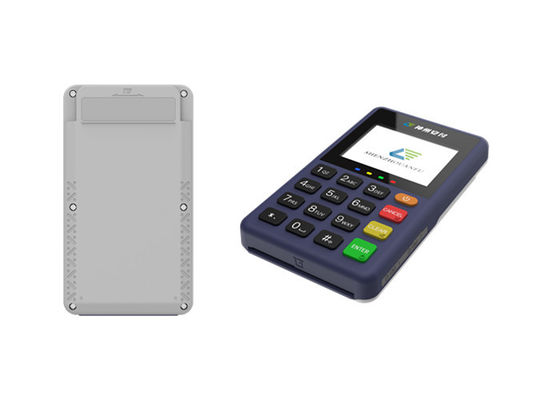

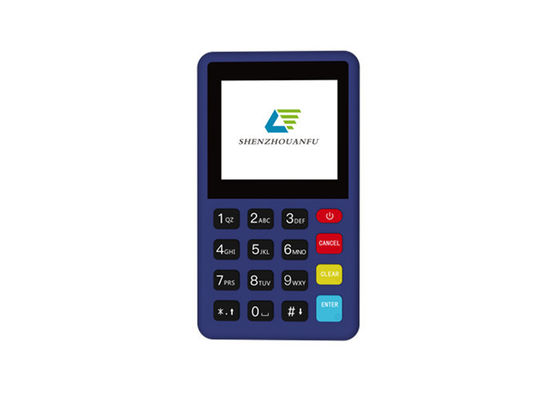

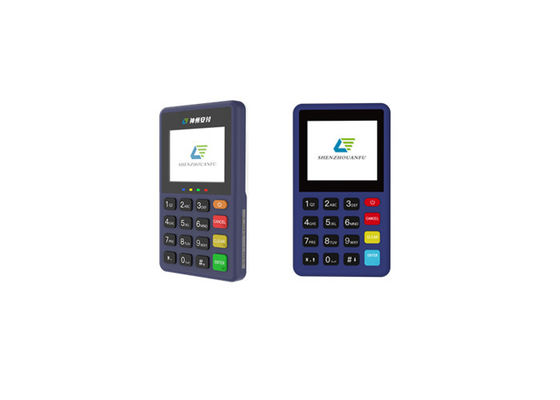

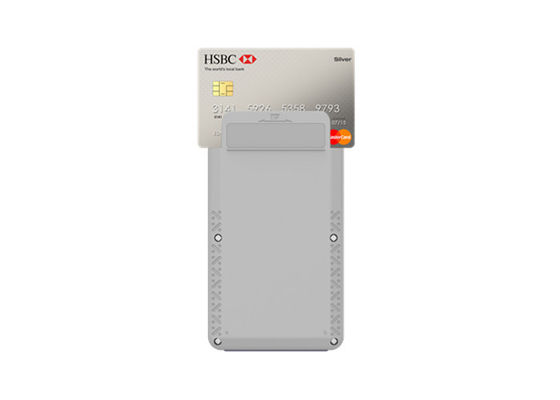

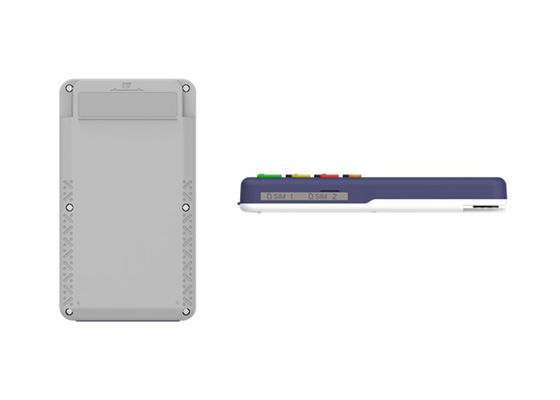

Android POS Terminal Advanced security PCI PTS 6.x approved Multiple connectivities 4G Wifi Bluetooth USB
Company Information
Introducing Anfu, the powerhouse at the forefront of security technology. Founded in 2015, Anfu has swiftly risen to prominence as a trailblazer in the design, development, and distribution of cutting-edge security solutions.
What sets Anfu apart is its relentless commitment to innovation and excellence. From its inception, Anfu has prioritized research and development, channeling resources into pioneering advancements in security SOC chips, modules, and terminal products. This dedication has earned Anfu a string of prestigious certifications, including national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, and ISO9001:2015 quality management system certification.
But Anfu's impact extends far beyond certifications. With a state-of-the-art factory spanning 35,000 square meters in Tianjin and boasting 15 production lines dedicated to MPOS systems, Anfu has the infrastructure and expertise to deliver superior products to clients worldwide.
Anfu's success is not just measured in accolades and infrastructure, but also in its intellectual property portfolio. With 14 independent intellectual property rights, including patents and copyrights, Anfu stands as a testament to the power of innovation.
However, what truly sets Anfu apart is its vision for the future. Driven by a passion for technological excellence and a commitment to customer satisfaction, Anfu continues to push the boundaries of what's possible in security technology. As industries evolve and security threats grow more complex, Anfu remains steadfast in its mission to provide innovative solutions that empower businesses and protect individuals.
In a world where security is paramount, Anfu is the partner you can trust to safeguard your future. Join us as we continue to lead the way in security technology and redefine the standards of excellence in the industry.
Specification:
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.4" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
Li-ion battery 3.7V/2000mAh |
Card Slots
SIM / SAM |
SIM Card x 2 |
| Keypad |
Numeric x 10
Function x 5
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
Printer charging base(optional) |
| Weight |
160g |
| Dimensions |
123(L) x 70(W) x 17(H) mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
Product Feature
Beijing Shenzhou Anfu Technology Co.,Ltd is a high-tech enterprise engaged in financial payment terminal products, It is committed to product research and development, system integration and technical services in the field of safe payment, providing mobile payment products of international advanced level, offline payment
Advantages
● It supports 4G/3G/2G networking
● It supports the internet sharing function of mobile phone Bluetooth
● It supports handling of magnetic stripe card , contact IC card and non - contact IC card
● It supports NFC payment of mobile phone such as Apple Pay , etc .
● It supports QR code payment of WeChat , Alipay , Quick Pass , etc .
● It supports electronic signature receipt and paperless management
● Configured with camera to support the dual modes of main Scanning and being Scanned
● With attack - detection mechanism , multiple anti - disassembly and self - destruction mechanism
● It meets the latest safety certification standard of UnionPay
● The base has charging function
●The base is a dedicated Bluetooth printer for AF69 products
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
