Product Details:
|
Item: | Android POS Terminal | Thermal Printer: | Built-in 58*40mm Thermal Printer |
---|---|---|---|
Standard: | PCI PTS EMV | Memory Ram: | 1GB |
Loading Port: | Tianjing Port,or Guangzhou Port | Material: | Plastic And ABS |
Screen Size: | 5 Inch | Emv: | Yes |
High Light: | supermarket cash register Handheld pos terminal,portable cashier machine Handheld pos terminal,Android Handheld pos terminal |

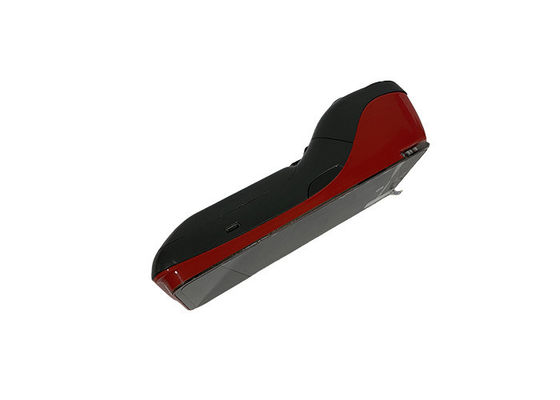

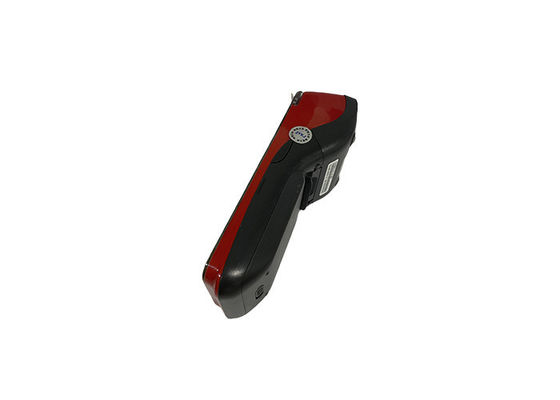

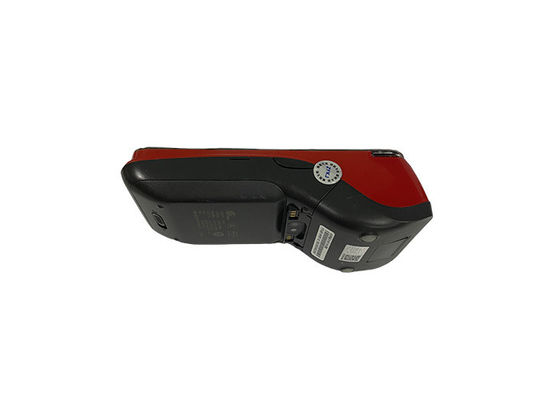

4G Android 7.1 support NFC mobile card POS for A920 smart terminal device
Company Information
Anfu is a dynamic high-tech company based in Beijing, China, renowned for its expertise in security solutions and intelligent terminal products. Established with a vision to revolutionize the security industry, Anfu specializes in designing, developing, and distributing state-of-the-art security SOC chips, modules, and terminal products.
With a strong focus on innovation and quality, Anfu has earned prestigious certifications including national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, software enterprise certification, and ISO9001:2015 quality management system certification. This recognition underscores Anfu's commitment to delivering top-notch products that meet the highest standards of performance and reliability.
Anfu's comprehensive product lineup caters to diverse industries, ranging from finance and banking to e-government and smart homes. Leveraging advanced technologies and a team of skilled professionals, Anfu continuously pioneers groundbreaking solutions that address evolving security challenges in today's digital landscape.
As a trusted partner, Anfu is dedicated to providing cutting-edge security solutions tailored to meet the unique needs of its clients. With a focus on innovation, quality, and customer satisfaction, Anfu stands at the forefront of the security industry, driving progress and empowering businesses worldwide.
Specification:
Operating System | Paydroid Powered by Android 7.1 |
Processor | Cortex A7 + ARM |
Memory | 8GB eMMC Flash + 1GB DDR RAM | Optional: 16GB eMMC Flash + 2GB DDR RAM Extended Micro SD card slot up to 128GB (OS 7.1) or 32GB (OS 5.1) |
Card Readers | Chip & PIN | NFC Contactless | Magnetic Stripe |
Cameras | 5MP Rear-Facing + 0.3MP Front Facing |
Displays | 5'' IPS WXGA 720 x 1280 Pixels Multi-Point Capacitive HD Touch Screen |
Comms Congurations |
4G + WiFi (2.4GHz, optional 5GHz) + Bluetooth 4.0 |
Battery | 5250mAh | 3.7V |
Printer | 40 lines/sec | Paper roll outer diameter: 40mm |
SIM / SAM | 1 x SIM + 2 x SAM I Optional: 2 x SIM + 1 x SAM |
Positioning | GPS |
Keys / Buttons | 3 Keys: Power ON/OFF | Volume+ | Volume- |
Audio | 1 Buzzer | 1 Speaker | 1 Microphone |
Ports | 1 Micro USB OTG | 6 PIN POGO PIN |
Adapter | Input: 100 - 240V AC, 50Hz / 60Hz I Output: 5.0V DC, 2.0A |
Physical | 175.7 * 78 * 57 mm, 458g |
Environmental | (-10°C ~ 50°C (14°F ~ 122°F) Operating Temperature -20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature 5% ~ 96% Relative Humidity, Non-Condensing |
Accessories | PS200 Pole Stand | Silicon Protective Sleeve | Leather Case + Shoulder Strap |
L920-BC: Charging Base | 1 Power Port (Micro USB) | 155.2 * 83 * 42.6 mm | |
L920-BM: Charging Base + LAN | 1 RS232 (RJ45) | 1 Ethernet (RJ45) | | |
1 Power port (Micro USB) | 2USB (Host) | 178 * 84.2 * 43.7 mm | |
L920-BF: Charging Base + QR Scanner | 1 RS232 (RJ45) | 1 Ethernet (RJ45) | | |
1 Power port (Micro USB) | 2 USB (Host) | 220.5 * 87 * 71.5 mm | |
L920-BE: Charging + Wireless | WiFi (2.4GHz) + Bluetooth 4.0 | 1 RS232 (RJ45) | | |
1 Ethernet (RJ45) | 1 Power port (Micro USB) | 1 Micro USB (Device) | 1 USB (Host) | | |
178 * 84.2 * 43.7 mm | |
Certications | PCI PTS 5.x SRED | EMV L1 & L2 | EMV Contactless L1 | Visa payWave | |
MasterCard Contactless | UPI qUICS | Amex ExpressPay | Discover D-PAS | | |
JCB J/Speedy | Interac Flash | MasterCard TQM | Common.SECC UKCC | CE | RoHs | ATEX |
Beijing Shenzhou Anfu Technology Co.,Ltd is a high-tech enterprise engaged in financial payment terminal products, It is committed to product research and development, system integration and technical services in the field of safe payment, providing mobile payment products of international advanced level, offline payment
Advantages
● It supports 4G/3G/2G networking
● It supports the internet sharing function of mobile phone Bluetooth
● It supports handling of magnetic stripe card , contact IC card and non - contact IC card
● It supports NFC payment of mobile phone such as Apple Pay , etc .
● It supports QR code payment of WeChat , Alipay , Quick Pass , etc .
● It supports electronic signature receipt and paperless management
● Configured with camera to support the dual modes of main Scanning and being Scanned
● With attack - detection mechanism , multiple anti - disassembly and self - destruction mechanism
● It meets the latest safety certification standard of UnionPay
● The base has charging function
●The base is a dedicated Bluetooth printer for AF69 products
Products Name | MOQ(in the last 12month) |
POS Device | 5 Pieces |
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
