Product Details:
|
Screen Size: | 4 Inch | Indicator: | LED Status Indicator |
---|---|---|---|
Card Reader: | Magnetic Stripe/EMV/Contactless | Model No: | AF820 |
Bluetooth: | Bluetooth 3.0 / 4.0 | Buttons: | Power On/Off Button |
Communication: | Ethernet/Wi-Fi/Bluetooth | Battery: | 5200mAh |
High Light: | supports all payment smart POS terminal,Android 13 smart POS terminal,NFC EMV smart POS terminal |

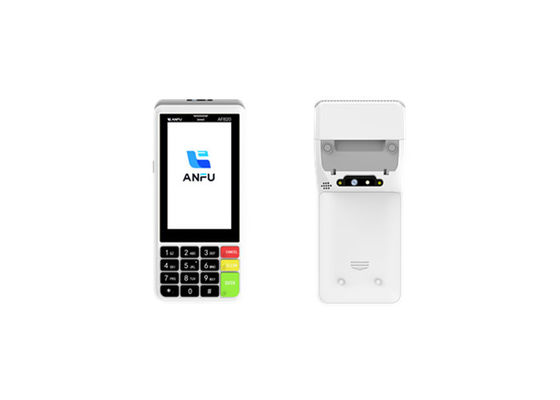

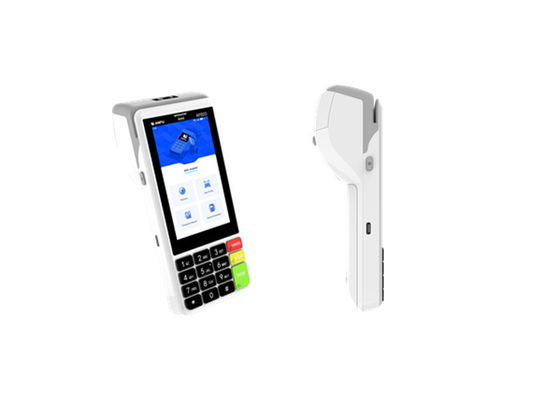

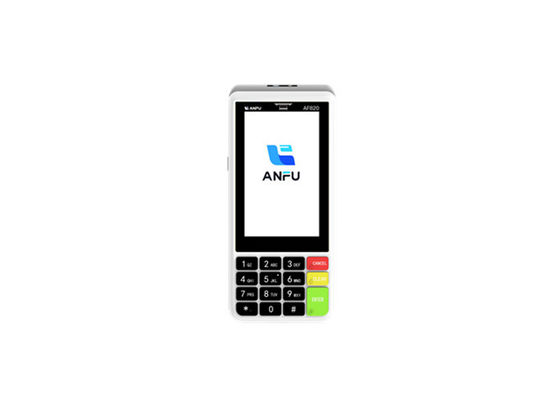

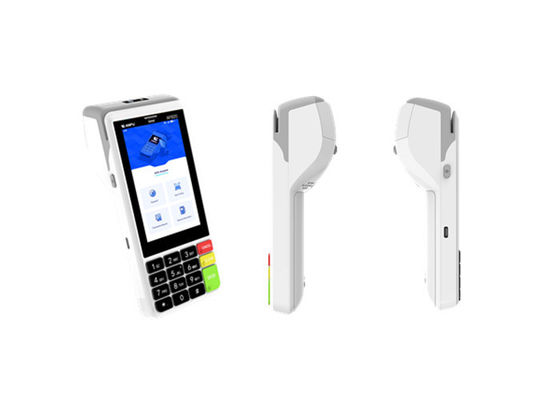

ANFU AF820 New Android 13 smart POS terminal supports all payment with NFC EMV certified
Company Information
Discover Anfu, a beacon of innovation in the realm of security technology. Anfu, home to Beijing Shenzhou Anfu Company, stands as a testament to excellence in the design, development, and distribution of cutting-edge security SOC chips and modules. With a focus on both tradition and progress, Anfu seamlessly merges ancient charm with modern ingenuity.
At the heart of Anfu's ethos lies a commitment to relentless research and development, evidenced by its array of certifications including national high-tech enterprise and IS9001:2015 quality management system. Embracing independence in innovation, the company holds 14 distinguished intellectual property rights, including patents and copyrights.
Anfu's product portfolio extends across diverse sectors, from intelligent terminals to smart home solutions, from financial payment systems to specialized information encryption products. Leveraging a 32-bit embedded high-performance CPU SOC chip design platform, Anfu pioneers advancements in information security and mobile payment technology.
With a keen eye on the future, Anfu continues to invest heavily in product research and design, ensuring its position at the forefront of the security encryption landscape. Through its unwavering dedication to excellence, Anfu has earned recognition as a trusted supplier of security solutions both domestically and internationally, making it a name synonymous with innovation and reliability in the field of security technology.
Specification:
Product configuration | Parameter |
Operating system | Anfuos 1.0 Based on Android 13 |
Processor | AP:64-bit Quad-Core Cortex A53 2.0GHz |
Memory | 8 GB eMMC + 1GB LPDDR3 16 GB eMMC + 2GB LPDDR3 Optional |
Card Readers | MSR: IS07810-7813,3 tracks ic card: IS07816 13.56MHZ, ISO/IEC14443 TypeA&B, |
Camera | Front-facing camera:0,3 million pixelss,Fixed focal (optional)Rear camera:5 milion pixels,Auto zoom |
Display | 4" ips Screen, 480x800. capacitive Multi-Point Touch Panel |
Comms | WiFi® (2.4G)|4G(Cat-4)|3G (WCDMA)|2G(GPRS) | Bluetoothe 4.2 |
Battery | 5200mAh |
Printer | 58*40mm |
SIM / SAM | SlM Card x 2 + PSAM X 1 or SlM Card x 1 + PSAM X 2, SD Card x 1 eSiMx1 |
Positioning | GPS/GLONASS/BeiDou (Optional) |
Keys Buttons | Numeric*10 power Key *1 (Left side) Function*5 |
Audio | 1x Buzzer, 1x loudspeaker |
Ports | 1 Type-C USB OTG | 1 DC Power | PoGo piN (support for scanning and charging) |
Indicator lights | 1 Power indicator ligt, 4 Work indicator lights |
Adapter | Input: AC 100-240V, 50/60Hz Output:; 5V/2A |
Physical dimension | 180*80*65mm |
Environmental | Storage temperature: -20°c to 60*cOperating temperature: 0°c to 55°CHumidity: ≤95% |
Certi_xoo1f_cationse | PCI 6 I EMV Contact L1 I EMV Contact L2 I EMV ContactiessL1 I TQM IpayWave l payPassD-PAS l American Express l UPI I CE I ROHS |
SMARTPOS--AF820
The latest Android13 system, the system is smoother
4.0-inch color screen, more convenient to use
External digital installation, safer payment
Printing, scanning code, card payment are fully!supported
Products Name | MOQ(in the last 12month) |
POS Device | 5 Pieces |
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
