Product Details:
|
Warranty: | 12 Months | Use: | Barcode Printer |
---|---|---|---|
Support: | WIFI & BT | Touch Panel: | Capacititve Touch |
Card Type: | Dual SIM Cards | Dimensions: | 180*80*65mm |
Standard: | EMV PCI Visa, Mastercard | Wireless Connection: | Connects With Mobile Phone Via Bluetooth |
High Light: | AF820 Payment Terminal Pos Machine,Android 13 Payment Terminal Pos Machine |
Company Information
Introducing Anfu: where security meets innovation. Anfu, home to Beijing Shenzhou Anfu Company, is the epitome of cutting-edge technology in security solutions. Specializing in SOC chips and modules, Anfu leads the industry with its advanced designs and high-tech products.
Certified as a national high-tech enterprise and ISO 9001:2015 compliant, Anfu sets the standard for quality and reliability. With 14 patents under its belt, including 2 inventions and 9 software copyrights, Anfu is at the forefront of innovation.
Using a 32-bit embedded high-performance CPU SOC chip design platform, Anfu delivers state-of-the-art solutions for information security, mobile payment, and more. Its products are widely deployed in sectors ranging from intelligent terminals to financial services.
Driven by a commitment to research and development, Anfu continuously pushes the boundaries of technological advancement. With a focus on independence in innovation, the company invests heavily in product design and development.
Anfu's reputation as a trusted supplier of security solutions extends both nationally and internationally, making it the go-to choice for organizations seeking top-tier security technology. In summary, Anfu is synonymous with excellence in security technology, setting new standards with each innovation.
Specification
Product configuration | Parameter |
Operating system | Anfuos 1.0 Based on Android 13 |
Processor | AP:64-bit Quad-Core Cortex A53 2.0GHz |
Memory | 8 GB eMMC + 1GB LPDDR3 16 GB eMMC + 2GB LPDDR3 Optional |
Card Readers | MSR: IS07810-7813,3 tracks ic card: IS07816 13.56MHZ, ISO/IEC14443 TypeA&B, |
Camera | Front-facing camera:0,3 million pixelss,Fixed focal (optional)Rear camera:5 milion pixels,Auto zoom |
Display | 4" ips Screen, 480x800. capacitive Multi-Point Touch Panel |
Comms | WiFi® (2.4G)|4G(Cat-4)|3G (WCDMA)|2G(GPRS) | Bluetoothe 4.2 |
Battery | 5200mAh |
Printer | 58*40mm |
SIM / SAM | SlM Card x 2 + PSAM X 1 or SlM Card x 1 + PSAM X 2, SD Card x 1 eSiMx1 |
Positioning | GPS/GLONASS/BeiDou (Optional) |
Keys Buttons | Numeric*10 power Key *1 (Left side) Function*5 |
Audio | 1x Buzzer, 1x loudspeaker |
Ports | 1 Type-C USB OTG | 1 DC Power | PoGo piN (support for scanning and charging) |
Indicator lights | 1 Power indicator ligt, 4 Work indicator lights |
Adapter | Input: AC 100-240V, 50/60Hz Output:; 5V/2A |
Physical dimension | 180*80*65mm |
Environmental | Storage temperature: -20°c to 60*cOperating temperature: 0°c to 55°CHumidity: ≤95% |
Certi_xoo1f_cationse | PCI 6 I EMV Contact L1 I EMV Contact L2 I EMV ContactiessL1 I TQM IpayWave l payPassD-PAS l American Express l UPI I CE I ROHS |

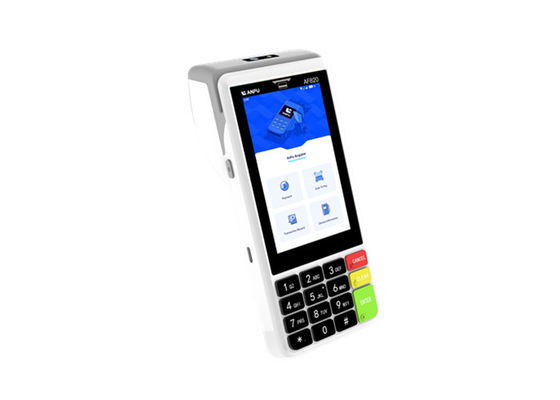

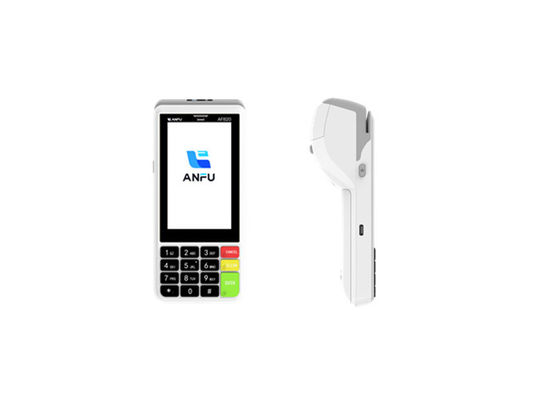

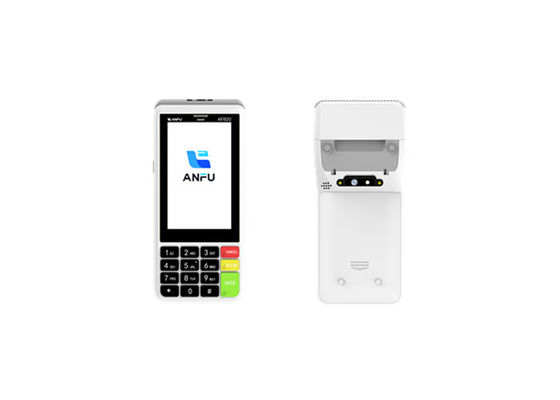

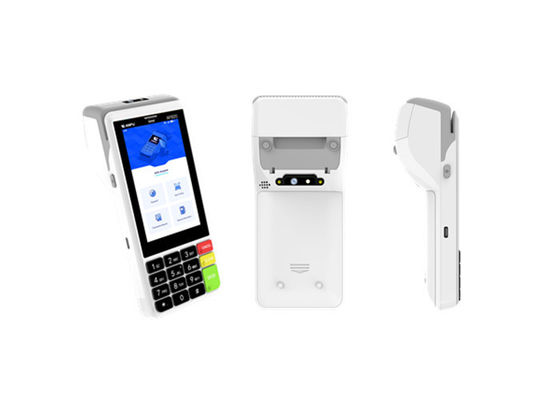

SMARTPOS--AF820
The latest Android13 system, the system is smoother
4.0-inch color screen, more convenient to use
External digital installation, safer payment
Printing, scanning code, card payment are fully!supported
Products Name | MOQ(in the last 12month) |
POS Device | 5 Pieces |
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
