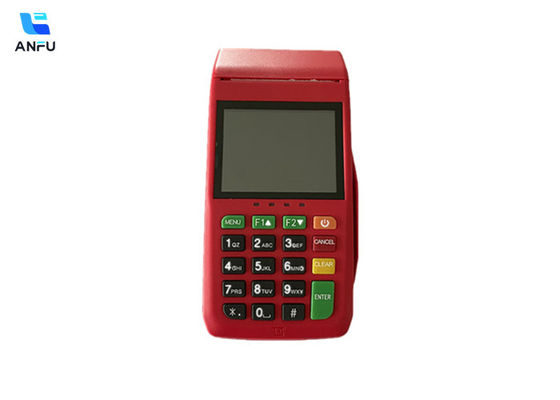

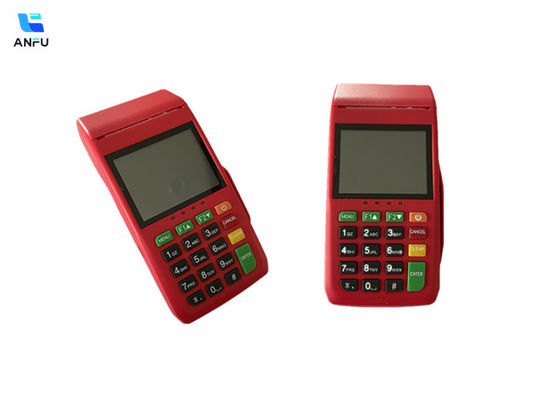

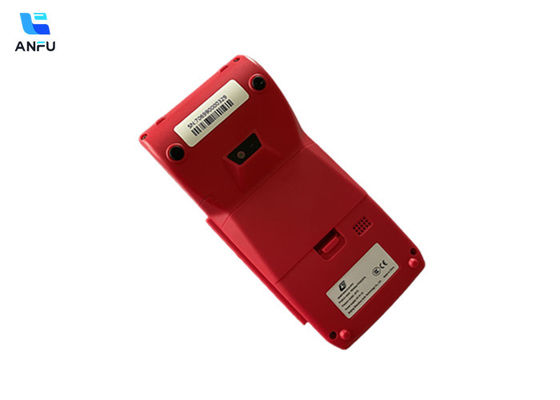

Brand New Function Key POS Device Accessories Keypad For AF75 POS Terminal Machine
Company Information
Allow me to introduce you to Shenzhou Anfu, a powerhouse in security technology solutions. Specializing in security SOC chips and modules, as well as innovative terminal products, Shenzhou Anfu boasts a track record of excellence.
With 14 independent intellectual property rights and a commitment to independent research and development, they lead the charge in technological innovation. Their solutions, spanning from intelligent terminals to financial security, have earned them a trusted reputation both domestically and internationally.
I believe Shenzhou Anfu's expertise aligns perfectly with [Customer's Company]'s needs. Let's explore how they can elevate your security infrastructure together.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
