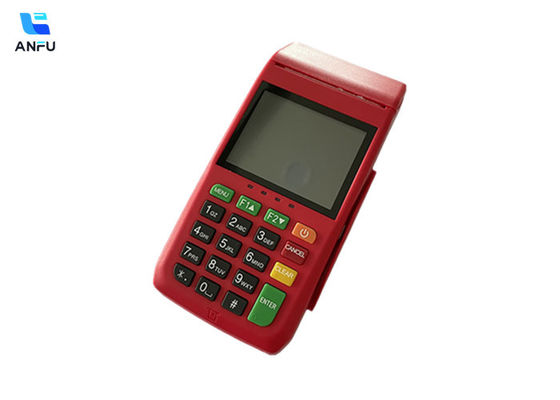

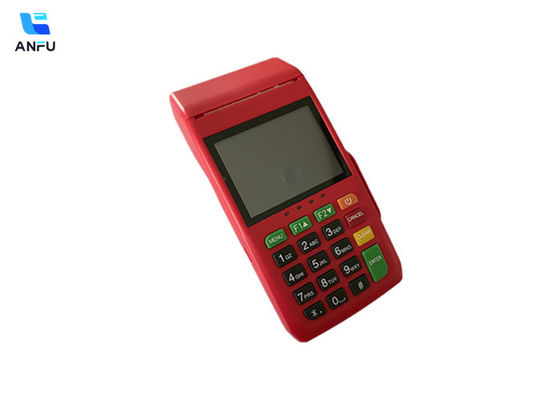

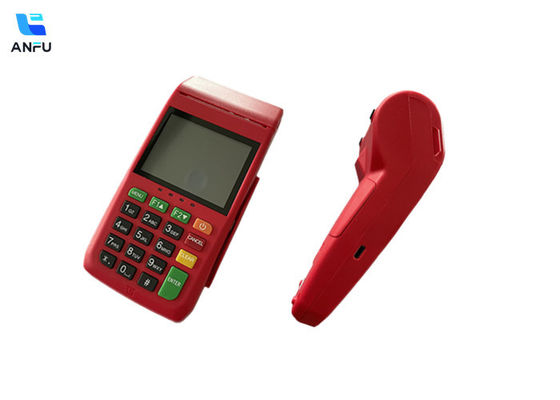

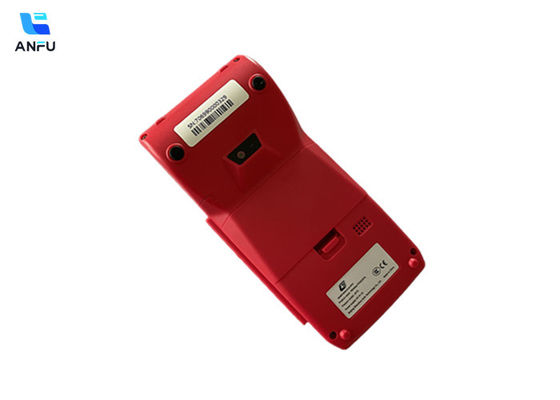

Anfu mobile 2.8"TFT display handheld traditional pos terminal with 58mm thermal printer
Company Information
I hope this message finds you well. I am excited to introduce you to Shenzhou Anfu, a leading innovator in the field of security technology.
Shenzhou Anfu is renowned for their expertise in security SOC chips and modules, as well as their advanced security terminal product design, development, and sales. They have earned several prestigious certifications, including the national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, software enterprise certification, and ISO 9001:2015 quality management system certification. Moreover, they are an officially designated production and sales unit for commercial password products by the state password administration.
The company's strength lies in their robust research and development efforts, particularly in high-performance 32-bit embedded CPU SOC chip design. Their products are widely utilized across various domains such as intelligent terminals, smart home systems, smart locks, financial payment systems, and information encryption products.
Shenzhou Anfu holds 14 independent intellectual property rights, comprising 2 invention patents, 5 utility model patents, 4 appearance patents, and 9 software copyrights. Their commitment to independent research and development ensures that they stay at the forefront of technological innovation.
Each year, Shenzhou Anfu makes significant investments in product research and design, leading to the successful serial production of their AX200 chip products and the development of numerous industry security solutions. Their cutting-edge technology, strategic decision-making, and standardized management practices have established them as a prominent player in the security encryption field.
As a trusted supplier of security chips, modules, and intelligent security terminals, Shenzhou Anfu serves various sectors, including security, banking and finance, e-government, and convenience services, both domestically and internationally.
I believe that Shenzhou Anfu’s innovative solutions and commitment to excellence can provide significant value to your operations. I would be happy to facilitate further discussions or provide more detailed information on how Shenzhou Anfu can meet your specific needs.
Looking forward to exploring this exciting opportunity with you.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
