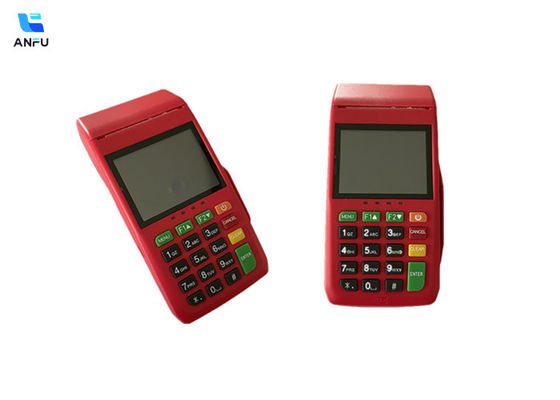

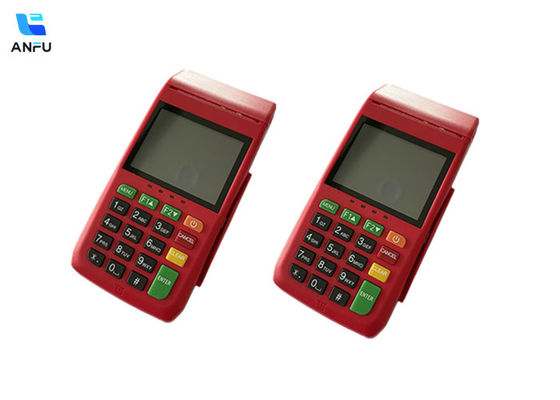

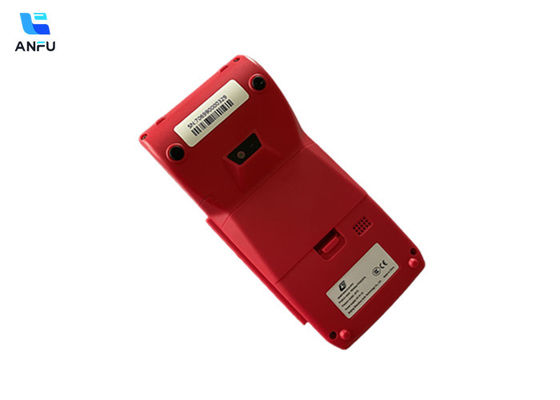

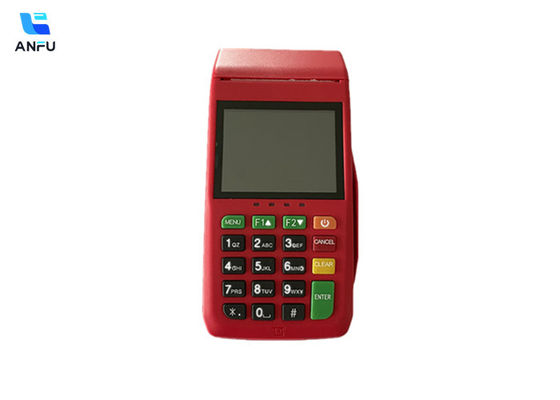

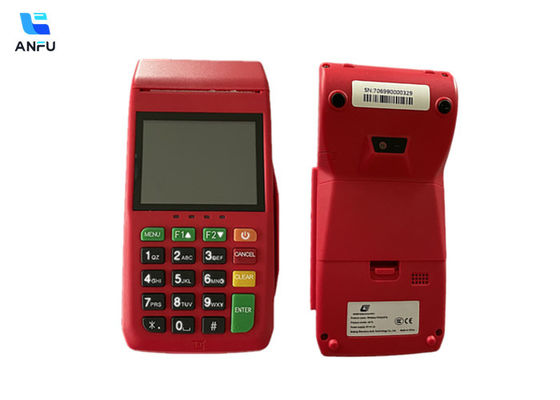

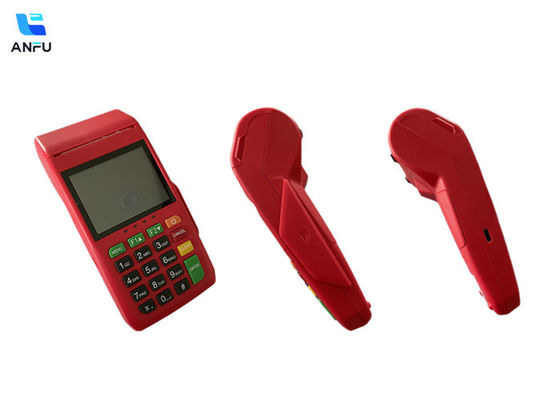

Portable Wireless NFC POS Handheld Parking Ticket POS Terminal Machine with Printer 1D/2D QR Scanner AF75
Company Information
Beijing Shenzhou Anfu Company (Shenzhou Anfu) is a high-tech enterprise specializing in the design, development, and sales of security SOC (System on Chip) chips and modules, as well as security terminal products. It has established a significant presence in the security technology sector, backed by several important certifications:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- Software Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- Designated Production Unit and Sales License for Commercial Password Products by the State Password Administration
Core Competencies and Product Focus
Shenzhou Anfu is dedicated to basic research and development in security technologies. The company's key areas of expertise include:
- 32-bit Embedded High-Performance CPU SOC Chip Design: Leveraging advanced platforms for developing high-performance embedded CPUs.
- Information Security and Mobile Payment Solutions: Designing SOC chips tailored for secure information handling and mobile payment systems.
- Industrialization and Product Application: Promoting products across various sectors such as intelligent terminals, security products, smart homes, smart locks, financial payments, and specialized information encryption products.
Intellectual Property and Innovation
Shenzhou Anfu has achieved significant milestones in intellectual property, holding 14 independent rights including:
- 2 Invention Patents
- 5 Utility Model Patents
- 4 Appearance Patents
- 9 Software Copyrights
Research and Development Commitment
The company prioritizes independent research and development, investing heavily in product research and design annually. This dedication has led to the serial production of the AX200 chip series and the development of multiple industry-specific security solutions.
Market Presence and Strategic Management
Through leading technology, strategic decision-making, and standardized management practices, Shenzhou Anfu has grown into a renowned enterprise in the field of security encryption. It now serves as an independent security chip and module supplier, as well as an intelligent security terminal provider, catering to sectors like security, banking, finance, e-government, and convenience services both domestically and internationally.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
