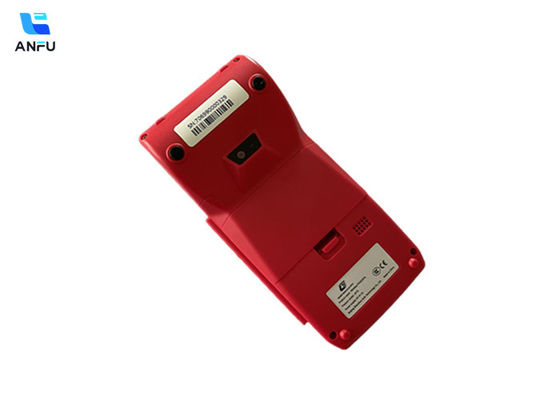

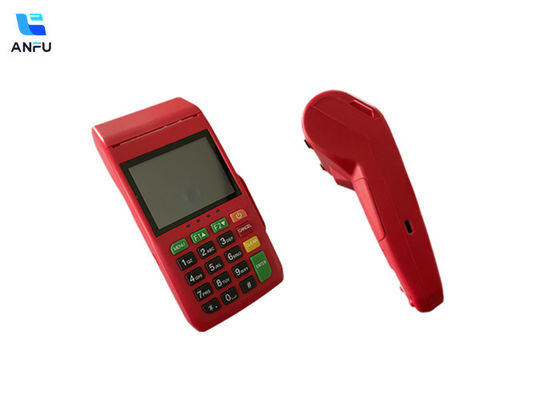

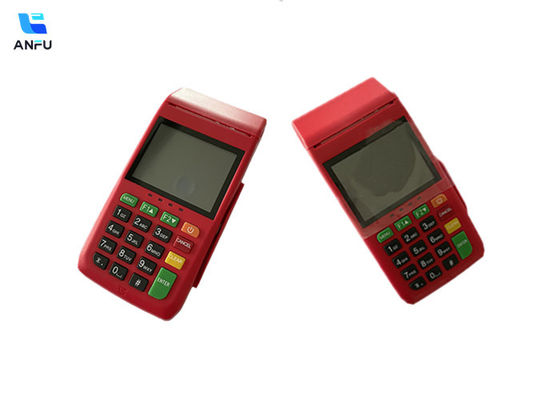

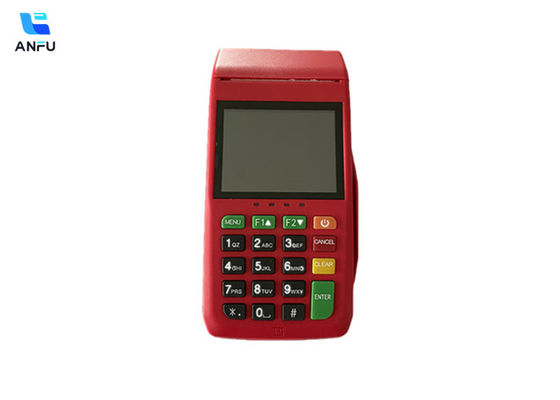

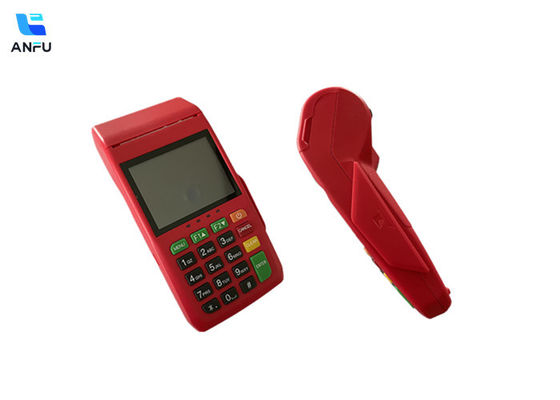

WiFi 2G 3G 4G NFC Handheld Mobile Linux RTOS POS Terminal Machine With Thermal Printer
Company Information
Beijing Shenzhou Anfu Company (Shenzhou Anfu) is a leading high-tech enterprise specializing in the design, development, and sales of security SOC (System on Chip) chips and modules, as well as security terminal products. Recognized for its pioneering innovations in the security technology sector, Shenzhou Anfu is dedicated to advancing the field of information security and mobile payments.
Certifications and Recognitions
Shenzhou Anfu’s commitment to quality and excellence is underscored by its numerous certifications:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- Software Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- Designated Production Unit and Sales License for Commercial Password Products by the State Password Administration
Core Competencies
At the heart of Shenzhou Anfu’s success is its focus on basic research and development in security technologies. The company excels in:
- 32-bit Embedded High-Performance CPU SOC Chip Design: Utilizing advanced platforms to develop high-performance embedded CPUs.
- Information Security and Mobile Payment Solutions: Crafting SOC chips designed for secure information processing and mobile payment systems.
- Industrialization and Product Application: Promoting products across a broad spectrum of sectors, including intelligent terminals, security products, smart homes, smart locks, financial payments, and specialized information encryption products.
Intellectual Property and Innovation
Shenzhou Anfu holds 14 independent intellectual property rights, which include:
- 2 Invention Patents
- 5 Utility Model Patents
- 4 Appearance Patents
- 9 Software Copyrights
This robust intellectual property portfolio highlights the company's dedication to innovation and independent research.
Research and Development
Investing significantly in research and development, Shenzhou Anfu has successfully launched the serial production of its AX200 chip series. The company continues to develop industry-specific security solutions, reinforcing its leadership in the security encryption field.
Market Presence and Strategic Vision
Through cutting-edge technology, strategic decision-making, and standardized management practices, Shenzhou Anfu has grown into a well-known enterprise in security encryption. The company serves as a trusted security chip and module supplier, as well as an intelligent security terminal provider, catering to sectors such as security, banking, finance, e-government, and convenience services both domestically and internationally.
Conclusion
Beijing Shenzhou Anfu Company stands as a beacon of innovation and reliability in the security technology industry. With its comprehensive approach to research and development, and a solid commitment to quality and customer satisfaction, Shenzhou Anfu is your ideal partner for advanced security solutions.
For more information or to explore partnership opportunities, please contact Beijing Shenzhou Anfu Company today.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
