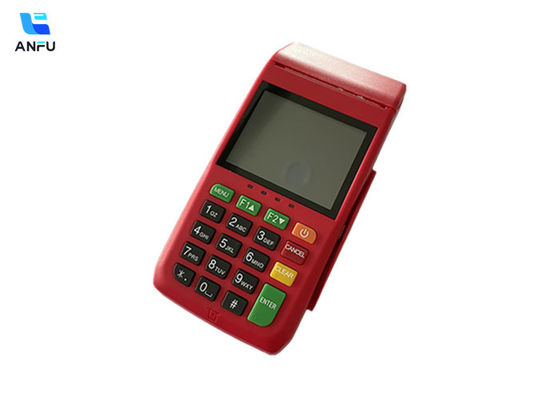

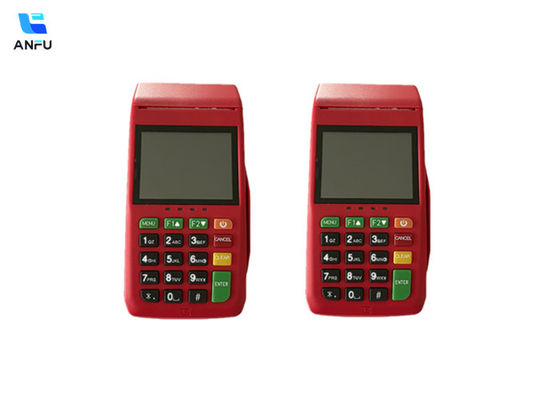

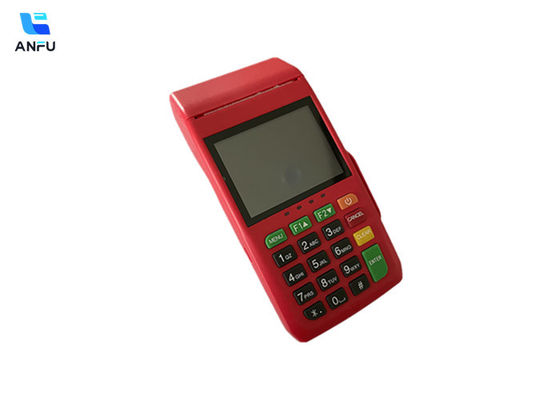

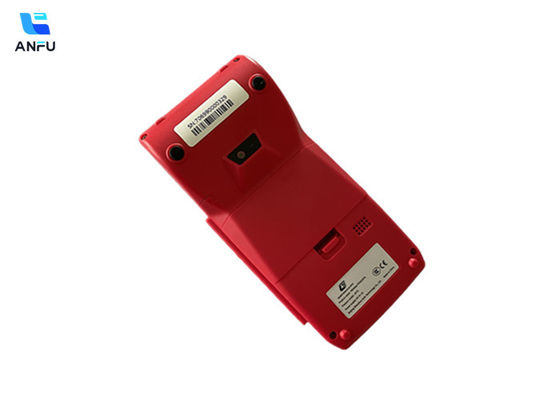

Shenzhou ANFU offline pos machine micro touch Card Swiping Machine Mobile POS Terminal Linux RTOS
Company Information
We are excited to introduce you to Beijing Shenzhou Anfu, a leader in the field of security technology and high-performance SOC (System on Chip) solutions. Shenzhou Anfu specializes in the design, development, and sales of cutting-edge security chips, modules, and terminal products.
About Shenzhou Anfu: Shenzhou Anfu is a highly accredited enterprise, holding several key certifications, including:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- State Password Administration Authorization for Commercial Password Products
Our Expertise: At Shenzhou Anfu, we focus on advancing security technology through robust research and development. Our expertise includes:
- Designing high-performance 32-bit embedded CPU SOC chips
- Developing innovative solutions for information security and mobile payments
- Creating comprehensive security solutions that serve a wide range of applications
Product Applications: Our products are integral to many advanced technology fields, including:
- Intelligent Terminals
- Security Protection Devices
- Smart Home Systems
- Smart Locks
- Financial Payment Systems
- Specialized Information Encryption Products
Innovative Achievements: We are proud of our extensive portfolio of intellectual property, which includes:
- 2 Invention Patents
- 5 Utility Model Patents
- 4 Design Patents
- 9 Software Copyrights
Commitment to Quality and Innovation: Shenzhou Anfu is dedicated to independent research and development, investing significantly in the innovation of our products. Our AX200 chip series, along with various industry-specific security solutions, showcases our commitment to leading-edge technology.
Global Reach: With advanced technology, strategic decision-making, and stringent management practices, Shenzhou Anfu has grown into a renowned enterprise in security encryption. We supply security chips, modules, and intelligent terminals to various sectors such as security, banking, finance, e-government, and public services worldwide.
Conclusion: We believe that Shenzhou Anfu's expertise and innovative solutions can significantly enhance your security infrastructure. We are committed to providing you with the highest quality products and services tailored to your needs.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
Your message must be between 20-3,000 characters!
