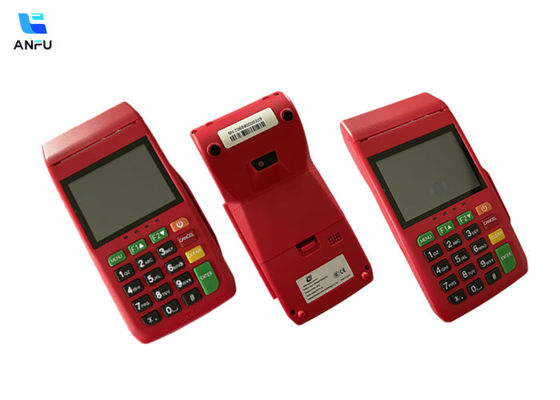

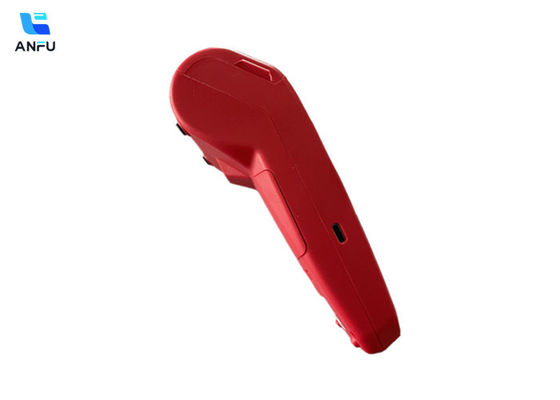

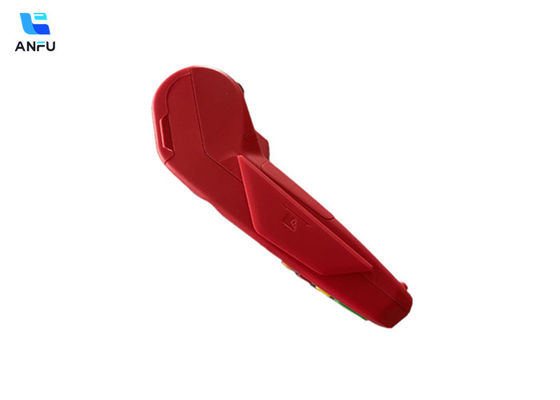

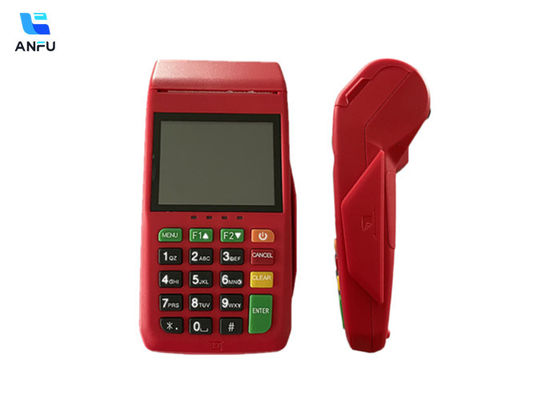

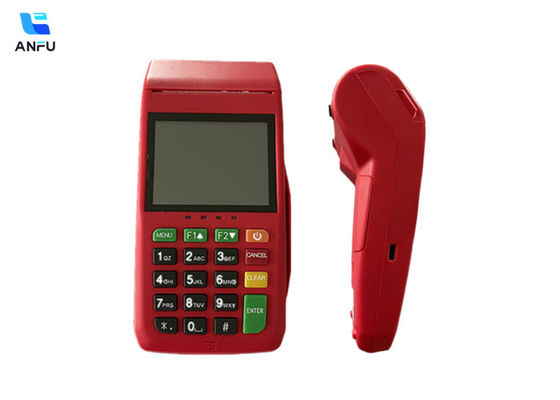

GPRS/4G/WIFI free sdk smart wireless mobile handheld linux pos terminal with nfc printer keyboard
Company Information
Beijing Shenzhou Anfu Company, commonly known as Shenzhou Anfu, stands at the forefront of high-tech enterprises specializing in security solutions. Our expertise spans across the design, development, and sales of security SOC chips, modules, and terminal products.
Certifications and Standards
We take pride in our array of prestigious certifications, including:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- Software Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- Authorization as a Production and Sales License Unit for Commercial Password Products by the State Password Administration
Our Core Focus
At Shenzhou Anfu, our primary focus lies in pioneering basic research and development in the security domain. Leveraging a robust 32-bit embedded high-performance CPU SOC chip design platform, we have successfully developed a range of SOC chip products and applications tailored for information security and mobile payment. Our end-to-end solutions encompass design, production, sales, and service, fostering the industrialization of advanced security technologies.
Diverse Applications
Our products are integral to various fields, including:
- Intelligent Terminals
- Security Protection Products
- Smart Home Systems
- Smart Locks
- Financial Payment Systems
- Specialized Information Encryption Products
Intellectual Property and Innovation
Innovation is the backbone of Shenzhou Anfu. We have secured 14 independent intellectual property rights, encompassing:
- 2 Invention Patents
- 5 Utility Model Patents
- 4 Appearance Patents
- 9 Software Copyrights
Commitment to Research and Development
Our relentless pursuit of innovation is evidenced by substantial annual investments in research and development. This dedication has resulted in the successful serial production of our AX200 chip products and the introduction of multiple industry-specific security solutions.
Market Leadership
Through cutting-edge technology, strategic decision-making, and rigorous management standards, Shenzhou Anfu has evolved into a renowned leader in the field of security encryption. We proudly serve as a trusted supplier of independent security chips, modules, and intelligent security terminals, catering to diverse sectors such as security, banking and finance, e-government, and convenience services, both domestically and internationally.
Conclusion
Shenzhou Anfu’s commitment to excellence and innovation has positioned us as a pivotal player in the security industry, continually pushing the boundaries to deliver advanced, reliable security solutions for a safer world.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
