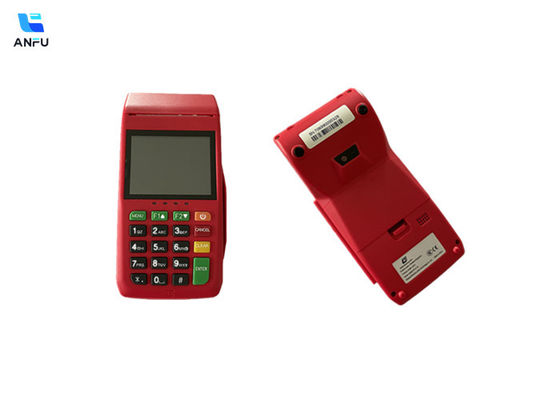

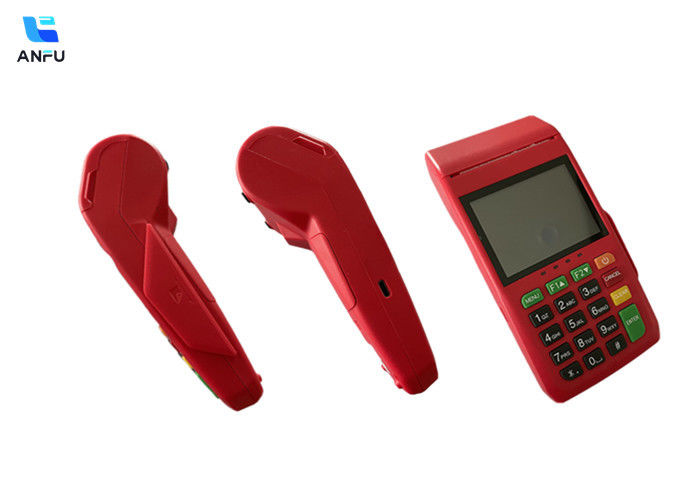

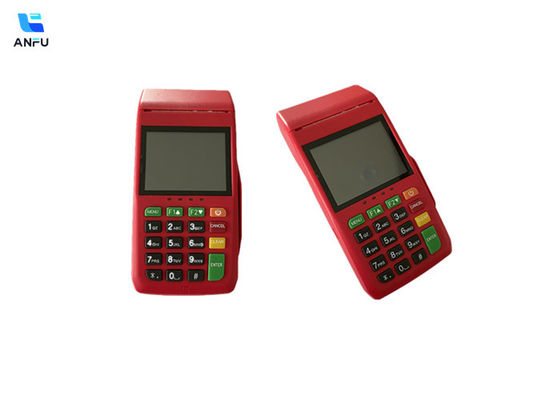

Handheld Pos Machine Payment Terminal with NFC 58mm Printer Touch Screen with EMV PCI 6.0
Company Information
Beijing Shenzhou Anfu Company, or Shenzhou Anfu, appears to be a highly competent and forward-thinking enterprise in the security technology sector. Here are a few key points that highlight its strengths and potential:
Strengths
-
Comprehensive Certifications: The company’s array of certifications, including national high-tech enterprise certification, UnionPay card acceptance terminal product enterprise certification, software enterprise certification, and ISO 9001:2015 quality management system certification, attest to its adherence to high standards and regulatory requirements. This not only bolsters its credibility but also enhances its competitive edge in the market.
-
Focus on R&D: Shenzhou Anfu’s strong emphasis on research and development is a significant advantage. By investing heavily in innovation, the company ensures it stays at the cutting edge of technology, particularly in areas like SOC chip design, information security, and mobile payments. This commitment to R&D fosters continuous improvement and helps the company develop advanced, industry-specific solutions.
-
Diverse Applications: The wide range of applications for Shenzhou Anfu’s products, from intelligent terminals and smart homes to financial payment systems and specialized information encryption, indicates a versatile and robust product portfolio. This diversification can help mitigate risks and capitalize on multiple market opportunities.
-
Intellectual Property: Holding 14 independent intellectual property rights, including invention patents, utility model patents, appearance patents, and software copyrights, demonstrates Shenzhou Anfu’s innovative capabilities and legal protection over its technologies. This intellectual property portfolio not only reinforces its market position but also provides a barrier to entry for competitors.
-
Global Reach: Shenzhou Anfu’s presence in both domestic and international markets showcases its ability to meet diverse regulatory standards and customer needs. Its recognition as a supplier in various sectors, including security, banking, finance, e-government, and convenience services, underscores its versatility and reliability.
Potential Areas for Growth
-
Market Expansion: While Shenzhou Anfu has a solid presence, there may be further opportunities to expand its market share, particularly in emerging markets where the demand for security solutions is growing.
-
Strategic Partnerships: Forming strategic alliances with other tech companies, financial institutions, and government bodies could enhance Shenzhou Anfu’s market penetration and innovation capacity.
-
Brand Awareness: Increasing its brand awareness through targeted marketing campaigns, participation in international tech conferences, and publications in industry journals could further establish Shenzhou Anfu as a thought leader in the security technology sector.
-
Customer-Centric Innovations: Focusing on customer feedback and market trends to drive product development can ensure that Shenzhou Anfu’s solutions continue to meet and exceed user expectations.
Conclusion
Overall, Beijing Shenzhou Anfu Company is well-positioned as a leader in security technology. Its strong foundation in R&D, comprehensive certifications, diversified product applications, robust intellectual property portfolio, and global reach all contribute to its success. By continuing to innovate and explore new markets, Shenzhou Anfu is likely to maintain and even enhance its prominence in the industry.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
