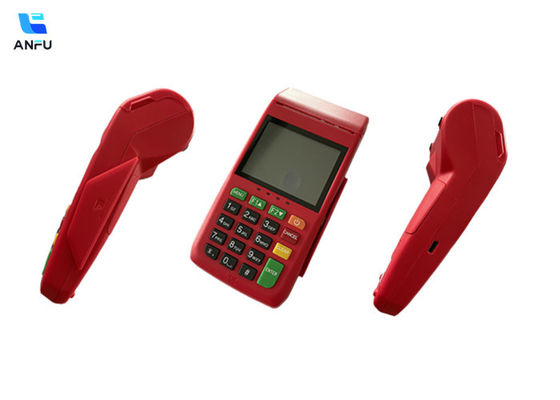

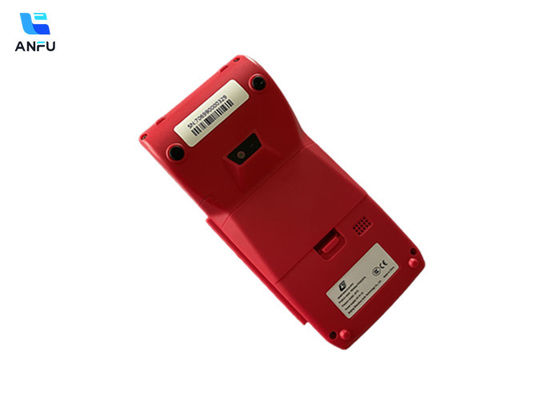

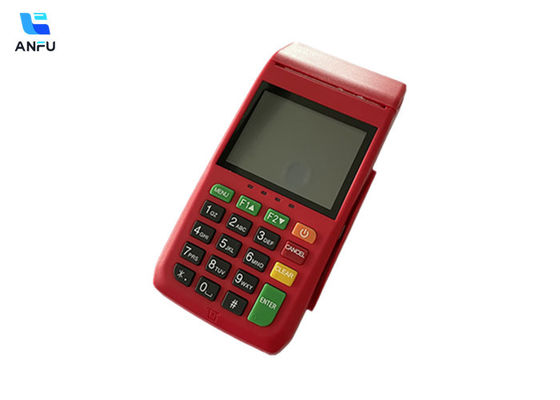

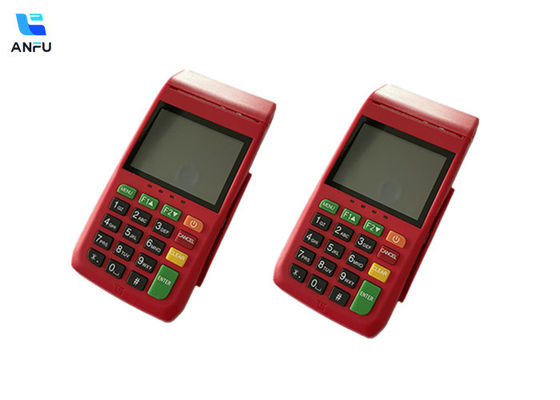

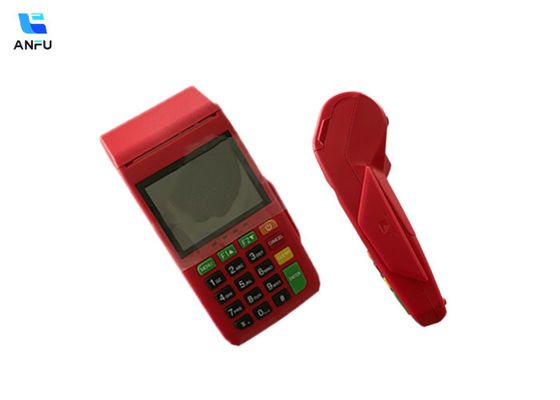

ANFU Handheld Pos Machine Payment Terminal with NFC 58mm Printer for Swiping card payment with PCI 6.0
Company Information
Pioneering Security Technology
Beijing Shenzhou Anfu Technology Co., Ltd. is at the forefront of innovation in security technology, particularly in the realm of SOC (System on Chip) solutions. The company leverages advanced 32-bit embedded high-performance CPU SOC chip design platforms to create cutting-edge products that enhance information security and mobile payment systems. Their expertise in developing secure SOC chips and modules has made them a key player in the industry.
Extensive Certification and Recognition
Shenzhou Anfu’s commitment to excellence is demonstrated by its array of certifications. These include the prestigious National High-Tech Enterprise Certification, UnionPay Card Acceptance Terminal Product Enterprise Certification, and ISO 9001:2015 Quality Management System Certification. Additionally, the company is authorized as a designated production and sales unit for commercial password products by the State Password Administration.
Diverse Applications and Industry Impact
The innovative products developed by Shenzhou Anfu are utilized across a broad spectrum of industries:
- Intelligent Terminals: Enhancing the functionality and security of modern devices.
- Security Protection: Providing robust solutions for safeguarding assets and information.
- Smart Home Devices: Ensuring secure and efficient home automation.
- Smart Locks: Offering advanced security for residential and commercial properties.
- Financial Payment Systems: Facilitating secure transactions and protecting financial data.
- Information Encryption: Specializing in encryption products for sensitive data protection.
Intellectual Property and Innovation
With 14 independent intellectual property rights, Shenzhou Anfu’s portfolio includes:
- 2 invention patents
- 5 utility model patents
- 4 design patents
- 9 software copyrights
This strong IP foundation underscores the company’s dedication to innovation and continuous improvement in product development.
Strategic Development and Growth
Shenzhou Anfu’s strategic approach to R&D involves significant annual investments, enabling the production and advancement of the AX200 chip series and the introduction of numerous industry-specific security solutions. This focus on innovation, coupled with scientific decision-making and standardized management practices, has positioned Shenzhou Anfu as a leading entity in security encryption.
Global Reach and Influence
As an independent supplier of security chips, modules, and intelligent security terminals, Shenzhou Anfu serves a wide range of sectors, including security, banking and finance, e-government, and convenience services, both in China and internationally. The company's technological leadership and commitment to quality have established it as a trusted name in the global market.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
