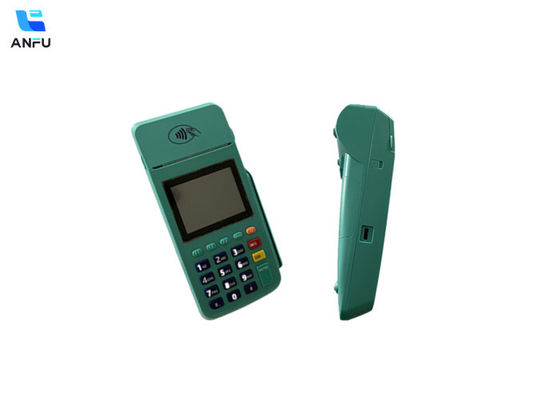

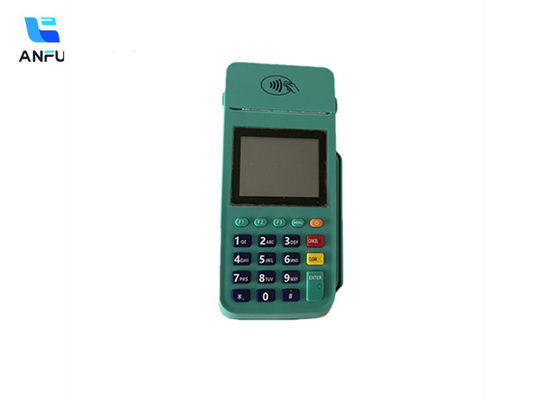

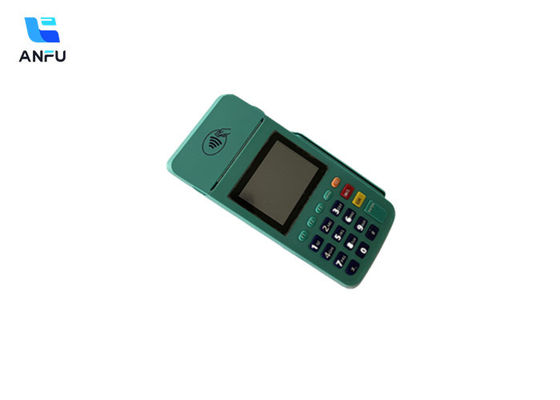

Product Details:
|
Print Paper Width: | 58mm | Touch Screen Type: | Resistive Touch Screen |
---|---|---|---|
Dimensions: | 177mm*81mm*56mm | Paper Roll: | 50mm (Max Diameter) |
Operating System: | LINUX RTOS | Payment Method: | T/T,PAYPAL ,WU,MONEY GRAM |
Card Support: | Visa, Mastercard | Scanner: | 1D&2D Barcode Scanner (optional) |
High Light: | Handheld POS Terminal with keypad,Handheld POS Terminal with NFC reader |
Company Information
I am pleased to introduce you to Beijing Shenzhou Anfu Technology Co., Ltd., a trailblazer in high-security technology. Our company is dedicated to the design, development, and sale of advanced security SOC chips, modules, and terminal products. Allow me to share why Shenzhou Anfu stands out as a trusted name in the industry.
Beijing Shenzhou Anfu Technology Co., Ltd. (referred to as Shenzhou Anfu) is a high-tech enterprise renowned for its expertise in creating innovative security solutions. Our primary goal is to provide state-of-the-art security technologies that safeguard your data and transactions.
Shenzhou Anfu has earned several prestigious certifications, reflecting our dedication to quality and innovation:
We focus on foundational research and development in security technology, leveraging a high-performance 32-bit embedded CPU SOC chip design platform. Our areas of expertise include:
Our products enhance security and functionality across various industries, including:
Shenzhou Anfu is proud to hold 14 independent intellectual property rights, comprising:
These intellectual property rights highlight our dedication to innovation and our commitment to advancing security technology.
Through significant investments in independent research and development, we have successfully produced the AX200 chip series and launched numerous industry-specific security solutions. Our cutting-edge technology, scientific decision-making, and standardized management have established Shenzhou Anfu as a trusted name in security encryption, serving sectors such as banking and finance, e-government, and more.
At Shenzhou Anfu, we don't just offer technology; we deliver peace of mind. Our high-security solutions are designed to protect your data, transactions, and sensitive information with the utmost security. We invite you to join us on our journey toward a safer, more secure future.
For more information about our high-security products and services, please feel free to contact us or visit our website. We look forward to working with you and providing the security solutions you need.
Specification
Function | Describe |
Processor | Main CPU: ARM Cortex-A5, maximum clock frequency 500MHz |
Security CPU: 32 bit, ARM Cortex-M0, maximum clock frequency 96MHz |
|
Memory | Main CPU: 16MB Flash, 16MB RAM |
Display | 2.4 "(320 × 240) TFT, resistive touch screen |
RTC | Built in RTC to save the clock; Button battery life > 5 years |
Signature pen | Touch screen handwriting signature pen, plug-in |
Key |
20 physical keys: 1 power key, 12 digit / letter keys and 7 function keys,Cancel, clear, F1 / F2 / F3, menu) |
Contact IC card |
Comply with ISO 7816 and China financial integrated circuit (IC) card specification; The card holder can be used for more than 300000 times |
Contactless card |
13.56MHz; Support iso14443 type A & B standard; Qpboc compliant |
Magnetic stripe card
|
Support three track data reading; It supports two-way card swiping. The swiping speed ranges from 10 cm / s to 100 cm / s. The service life of the magnetic stripe reader can reach more than 400000 times; It conforms to iso7811 |
Camera(optional) |
Built in 300 megapixel camera Support bar code, two-dimensional code scanning |
Printer |
High speed thermal printing, printing life is not less than 50km The specification is 58mm in width and 40mm in diameter |
mobile communication |
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;TDD-LTE:B40 GSM:B2/B3/B5/B8 (Recommended: South America) |
FDD-LTE:B1/B3/B5/B7/B8/B20;TDD-LTE:B38/B40/B41 GSM:B3/B8 (Recommended: Eurasia/Middle East/Africa) |
|
Wifi(optional) | 802.11 a/b/g/n,2.4G |
Bluetooth (optional) | BLE 4.0 and above |
Card slots | 1 SIM + 2 SAMs | 2 SIMs + 1 SAM |
External interface | 1 TYPE-C USB,For charging and serial communication |
Battery(Optional) | 3.7V,2500mAh 3.7V,3000mAh |
Buzzer | Support |
Indication light | 1 power indicator + 4 contactless indicator |
Physical size | 177mm*81mm*56mm |
Weight | 340g |
Certificate |
PBOC3.0 L1&L2 EMV L1&L2,EMV CL L1 PCI PTS 5.X,SRED UPTS2.0 Security assessment of UnionPay terminal Mastercard PayPass ,Visa PayWave ,Discover D-PAS,American ExpressPay SRRC/CTA/TQM3CCEBISWPC |
Products Name | MOQ(in the last 12month) |
POS Device | 5 Pieces |
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
