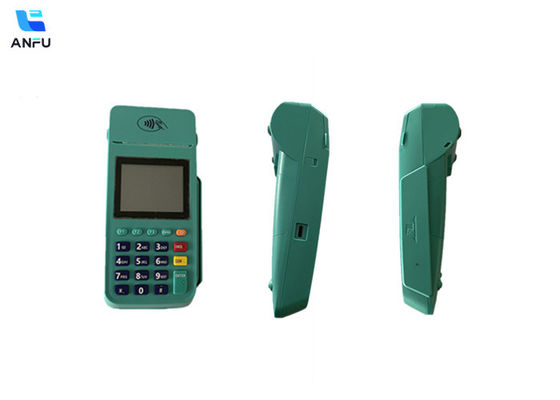

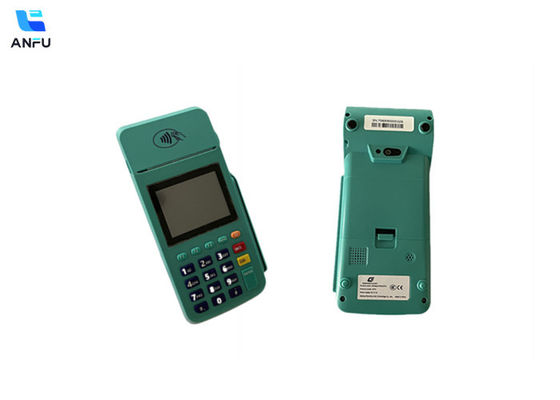

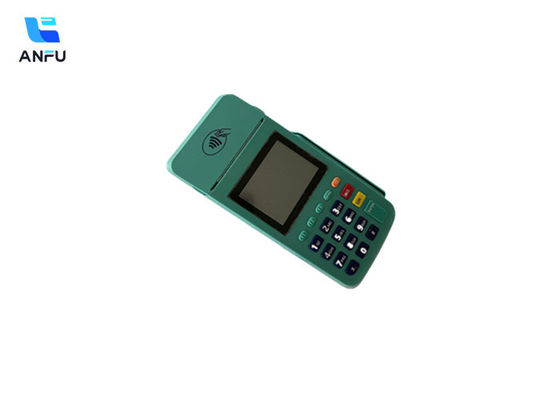

2.4 inch POS Machine All in One 4G WIFI Touch Screen handheld RTOS pos terminal with 58mm Thermal Printer
Company Information
Are you seeking a reliable partner that embodies innovation, quality, and exceptional service? Look no further than Shenzhou Anfu.
Why Choose Shenzhou Anfu?
-
Unparalleled Quality: At Shenzhou Anfu, quality isn't just a promise; it's a commitment. Our rigorous quality control processes ensure that every product meets the highest standards. Whether you're looking for precision, durability, or cutting-edge technology, Shenzhou Anfu delivers excellence consistently.
-
Innovation at its Core: In a rapidly evolving market, staying ahead is crucial. Shenzhou Anfu invests heavily in research and development to bring you the latest advancements and innovative solutions. Our products are designed to meet the demands of today and anticipate the needs of tomorrow.
-
Customer-Centric Approach: Your satisfaction is our priority. From the initial consultation to post-purchase support, we are dedicated to providing a seamless and personalized experience. Our team of experts is always ready to assist you, ensuring that your specific requirements are met with precision and care.
-
Sustainability and Responsibility: We believe in building a better future. Shenzhou Anfu is committed to sustainable practices that minimize our environmental impact. By choosing us, you're partnering with a company that values and actively pursues ecological responsibility.
-
Proven Track Record: Trust is built over time, and Shenzhou Anfu has a proven track record of delivering on its promises. Our satisfied clients span various industries, and their testimonials speak volumes about our reliability and performance.
-
Comprehensive Solutions: Whether you need bespoke solutions or standard products, Shenzhou Anfu offers a wide range of options tailored to your needs. Our flexibility and expertise enable us to cater to diverse requirements, providing you with the perfect solution for your business.
Join the Shenzhou Anfu Family
Choosing Shenzhou Anfu means choosing a partner who is as committed to your success as you are. Our dedication to quality, innovation, and customer satisfaction ensures that you receive the best products and services available.
Experience the Shenzhou Anfu difference today and see why so many businesses trust us as their go-to partner. Let's build a successful future together.
Specification
| Function |
Describe |
| Processor |
Main CPU: ARM Cortex-A5, maximum clock frequency 500MHz |
| |
Security CPU: 32 bit, ARM Cortex-M0, maximum clock frequency
96MHz
|
| Memory |
Main CPU: 16MB Flash, 16MB RAM |
| Display |
2.4 "(320 × 240) TFT, resistive touch screen |
| RTC |
Built in RTC to save the clock; Button battery life > 5 years |
| Signature pen |
Touch screen handwriting signature pen, plug-in |
| Key |
20 physical keys: 1 power key, 12 digit / letter keys and 7 function
keys,Cancel, clear, F1 / F2 / F3, menu)
|
| Contact IC card |
Comply with ISO 7816 and China financial integrated circuit (IC) card
specification;
The card holder can be used for more than 300000 times
|
| Contactless card |
13.56MHz；
Support iso14443 type A & B standard;
Qpboc compliant
|
|
Magnetic stripe
card
|
Support three track data reading;
It supports two-way card swiping. The swiping speed ranges from 10
cm / s to 100 cm / s. The service life of the magnetic stripe reader
can reach more than 400000 times;
It conforms to iso7811
|
| Camera(optional) |
Built in 300 megapixel camera
Support bar code, two-dimensional code scanning
|
| Printer |
High speed thermal printing, printing life is not less than 50km
The specification is 58mm in width and 40mm in diameter
|
|
mobile
communication
|
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B；TDD-LTE:B40
GSM:B2/B3/B5/B8 (Recommended: South America)
|
| |
FDD-LTE:B1/B3/B5/B7/B8/B20；TDD-LTE:B38/B40/B41
GSM:B3/B8 (Recommended: Eurasia/Middle East/Africa)
|
| Wifi(optional) |
802.11 a/b/g/n,2.4G |
| Bluetooth (optional) |
BLE 4.0 and above |
| Card slots |
1 SIM + 2 SAMs | 2 SIMs + 1 SAM |
| External interface |
1 TYPE-C USB,For charging and serial communication |
| Battery(Optional) |
3.7V,2500mAh 3.7V,3000mAh |
| Buzzer |
Support |
| Indication light |
1 power indicator + 4 contactless indicator |
| Physical size |
177mm*81mm*56mm |
| Weight |
340g |
| Certificate |
PBOC3.0 L1&L2
EMV L1&L2,EMV CL L1 PCI PTS 5.X,SRED
UPTS2.0 Security assessment of UnionPay terminal
Mastercard PayPass ,Visa PayWave ,Discover D-PAS,American
ExpressPay
SRRC/CTA/TQM3CCEBISWPC
|
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
