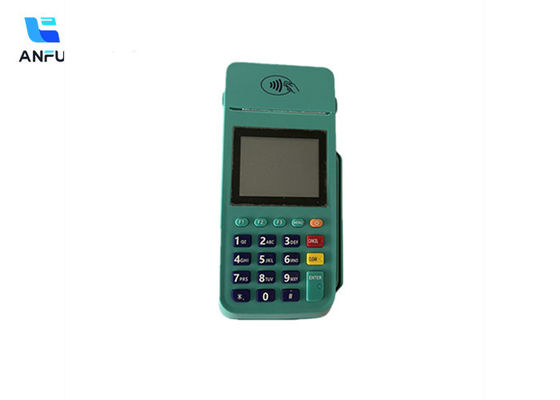

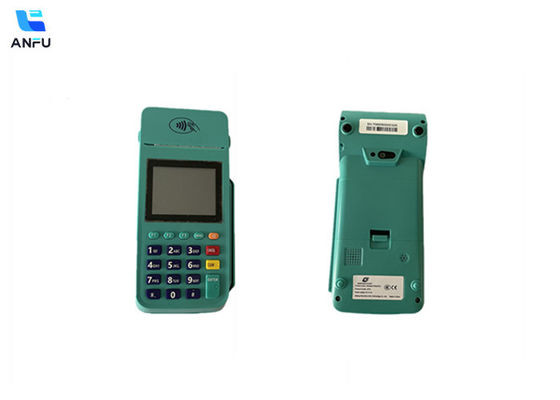

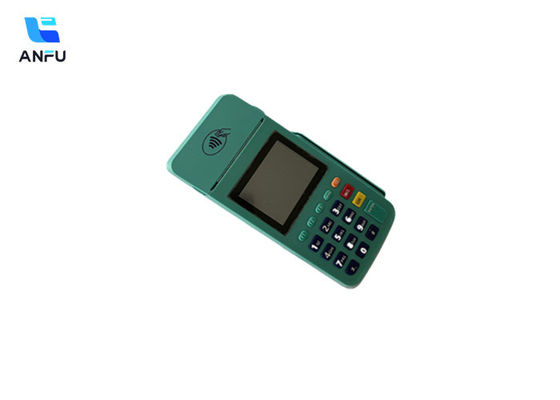

Handheld Smart Touch Screen Wireless Offline Wifi NFC Card Reader LINUX Pos Terminal with Receipt Printer
Company Information
Beijing Shenzhou Anfu Company (Shenzhou Anfu) is a high-tech enterprise that excels in the design, development, and sales of security SOC chips, modules, and terminal products. The company's core competencies lie in its advanced technology and its commitment to innovation in security solutions.
Highlights of Shenzhou Anfu
-
Comprehensive Certifications and Approvals:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- Software Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- Designated Production and Sales Licenses for Commercial Password Products by the State Password Administration
-
Focus on Advanced R&D:
- Specialized in 32-bit embedded high-performance CPU SOC chip design.
- Extensive research in information security and mobile payment SOC chip products.
- Continuous development of industry-leading security solutions.
-
Broad Application of Products:
- Intelligent terminals
- Security protection products
- Smart homes
- Smart locks
- Financial payment systems
- Special information encryption products
-
Significant Intellectual Property Portfolio:
- 14 independent intellectual property rights:
- 2 invention patents
- 5 utility model patents
- 4 appearance patents
- 9 software copyrights
-
Commitment to Independent Innovation:
- Significant annual investment in product research and design.
- Successful serial production of AX200 chip products.
- Development of a range of industry security solutions.
-
Industry Leadership:
- Known for leading technology, strategic decision-making, and standardized management.
- Recognized as a key supplier of security chips, modules, and intelligent security terminals.
- Serves diverse sectors including security, banking and finance, e-government, and convenience services both domestically and internationally.
Shenzhou Anfu stands out for its dedication to advancing security technology, its robust intellectual property, and its commitment to quality and innovation, making it a leader in the security encryption industry.
Specification
| Function |
Describe |
| Processor |
Main CPU: ARM Cortex-A5, maximum clock frequency 500MHz |
| |
Security CPU: 32 bit, ARM Cortex-M0, maximum clock frequency
96MHz
|
| Memory |
Main CPU: 16MB Flash, 16MB RAM |
| Display |
2.4 "(320 × 240) TFT, resistive touch screen |
| RTC |
Built in RTC to save the clock; Button battery life > 5 years |
| Signature pen |
Touch screen handwriting signature pen, plug-in |
| Key |
20 physical keys: 1 power key, 12 digit / letter keys and 7 function
keys,Cancel, clear, F1 / F2 / F3, menu)
|
| Contact IC card |
Comply with ISO 7816 and China financial integrated circuit (IC) card
specification;
The card holder can be used for more than 300000 times
|
| Contactless card |
13.56MHz；
Support iso14443 type A & B standard;
Qpboc compliant
|
|
Magnetic stripe
card
|
Support three track data reading;
It supports two-way card swiping. The swiping speed ranges from 10
cm / s to 100 cm / s. The service life of the magnetic stripe reader
can reach more than 400000 times;
It conforms to iso7811
|
| Camera(optional) |
Built in 300 megapixel camera
Support bar code, two-dimensional code scanning
|
| Printer |
High speed thermal printing, printing life is not less than 50km
The specification is 58mm in width and 40mm in diameter
|
|
mobile
communication
|
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B；TDD-LTE:B40
GSM:B2/B3/B5/B8 (Recommended: South America)
|
| |
FDD-LTE:B1/B3/B5/B7/B8/B20；TDD-LTE:B38/B40/B41
GSM:B3/B8 (Recommended: Eurasia/Middle East/Africa)
|
| Wifi(optional) |
802.11 a/b/g/n,2.4G |
| Bluetooth (optional) |
BLE 4.0 and above |
| Card slots |
1 SIM + 2 SAMs | 2 SIMs + 1 SAM |
| External interface |
1 TYPE-C USB,For charging and serial communication |
| Battery(Optional) |
3.7V,2500mAh 3.7V,3000mAh |
| Buzzer |
Support |
| Indication light |
1 power indicator + 4 contactless indicator |
| Physical size |
177mm*81mm*56mm |
| Weight |
340g |
| Certificate |
PBOC3.0 L1&L2
EMV L1&L2,EMV CL L1 PCI PTS 5.X,SRED
UPTS2.0 Security assessment of UnionPay terminal
Mastercard PayPass ,Visa PayWave ,Discover D-PAS,American
ExpressPay
SRRC/CTA/TQM3CCEBISWPC
|
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
