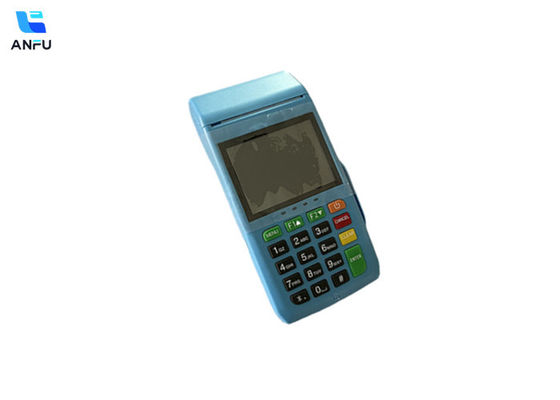

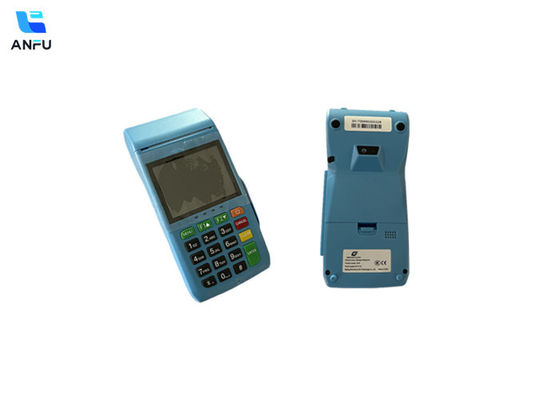

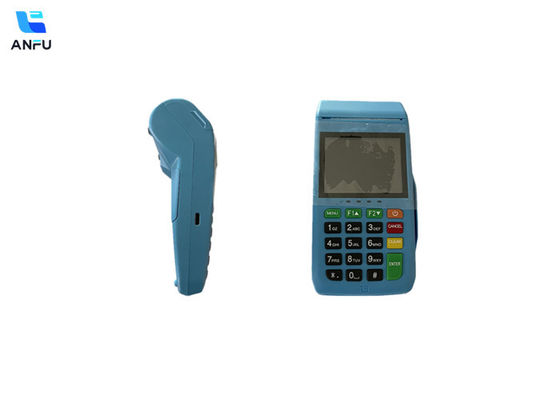

Mobile pos terminal Micro touch paypal payment method credit card readers for card reader payment
Company Information
Once upon a time, in the bustling city of Beijing, there was a visionary company called Shenzhou Anfu.
Shenzhou Anfu was not just any company; it was a pioneer, a trailblazer in the world of digital security. Imagine a fortress, not of stone and mortar, but of cutting-edge technology and innovation. This fortress protected the digital realm, ensuring that data, transactions, and communications were safe from any threat.
Chapter 1: The Birth of a Guardian In its early days, Shenzhou Anfu was driven by a mission to create the most secure and reliable SOC (System on Chip) solutions. Their engineers and scientists worked tirelessly, crafting a 32-bit embedded high-performance CPU SOC chip design platform. This platform became the heart of their many security products.
Chapter 2: Earning Trust and Recognition As the company grew, it garnered numerous accolades:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Certification
- Software Enterprise Certification
- ISO9001:2015 Quality Management System Certification
These certifications were like badges of honor, proving their commitment to excellence and quality.
Chapter 3: Innovating for the Future Shenzhou Anfu wasn’t content with just protecting the present; they aimed to secure the future. They invested heavily in research and development, holding 14 independent intellectual property rights, including:
- 2 invention patents
- 5 utility model patents
- 4 appearance patents
- 9 software copyrights
Each patent was a new spell, a new way to safeguard the digital landscape.
Chapter 4: Reaching Out Across the Globe From the bustling markets of China to the high-tech hubs of Silicon Valley, Shenzhou Anfu’s products found their place. Their SOC chips and security modules were integrated into intelligent terminals, smart homes, financial systems, and more. They were trusted by banks, governments, and tech giants alike, becoming a key player on the global stage.
Chapter 5: The Quest for Excellence What set Shenzhou Anfu apart was their relentless quest for excellence. They weren’t just about technology; they were about making the world a safer place. With each innovation, they moved closer to a future where digital threats were a thing of the past. Their commitment to independent research and development ensured that they always stayed ahead of the curve.
Chapter 6: A Call to Join the Guardians Now, Shenzhou Anfu stands as a beacon of security and innovation. They invite you to join them in their quest. Whether you’re a business looking for top-notch security solutions or an individual curious about the future of technology, Shenzhou Anfu welcomes you.
Together, we can build a safer, smarter, and more secure world.
The End… And the Beginning This is not just the end of Shenzhou Anfu’s story but also the beginning of a partnership. Let’s work together to protect the digital realm and create a brighter, more secure future
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
