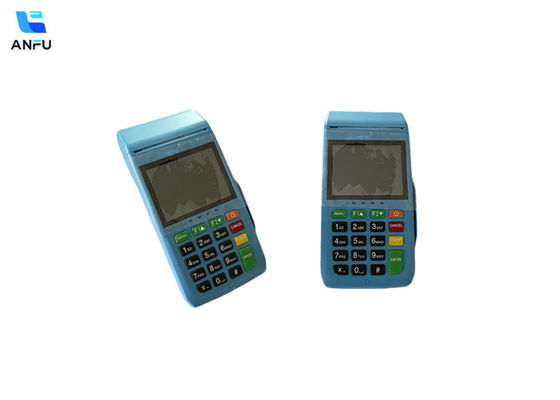

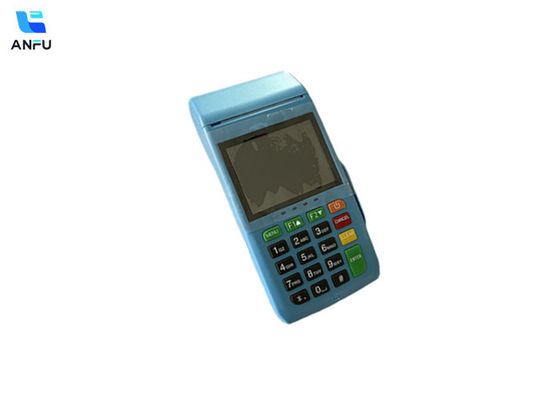

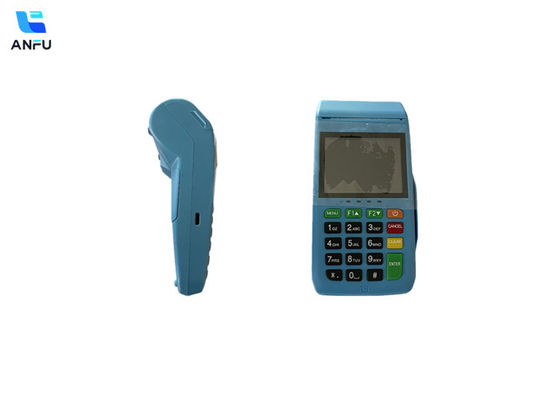

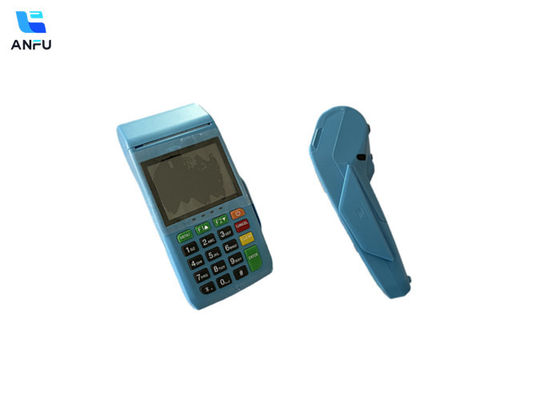

Capacitive Touch Screen All In One POS System Machine traditional pinpad pos terminal for retail payment
Company Information
We are thrilled to introduce Shenzhou Anfu, a key player in the security technology industry. This introduction will cover how Shenzhou Anfu's innovative solutions can enhance all of our services, ensuring we deliver the highest standards of security and efficiency.
Company Overview
Shenzhou Anfu is based in Beijing and specializes in the design, development, and sales of advanced security System on Chip (SOC) solutions and security terminal products. Our expertise and innovation make us a valuable partner in securing various applications and services.
Core Technologies and Capabilities
1. SOC Chips and Modules:
- Platform: Utilizing a 32-bit embedded high-performance CPU SOC chip design platform, we create versatile and powerful security solutions.
- Applications: These chips are integral to enhancing security across a multitude of services, from smart devices to financial transactions.
2. Security Terminal Products:
- Our range of security terminal products ensures that all our services, from data protection to transaction security, are fortified with state-of-the-art technology.
Certifications and Quality Standards
Shenzhou Anfu upholds the highest quality standards with the following certifications:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- Software Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- Authorization from the State Password Administration for commercial password products
These certifications reflect our commitment to quality, security, and innovation, which are critical for all our service offerings.
Product and Service Integration
1. Intelligent Terminals:
- Security and Efficiency: Integrating Shenzhou Anfu's SOC chips ensures our intelligent terminals are secure and efficient, enhancing user trust and experience.
2. Security Protection Products:
- Comprehensive Protection: Our security protection products offer advanced mechanisms to safeguard sensitive data and devices, critical for maintaining the integrity of all our services.
3. Smart Home Devices:
- Enhanced Security: Incorporating Shenzhou Anfu's technology into smart home devices provides robust security, making our smart home solutions safer and more reliable.
4. Smart Locks:
- Cutting-Edge Technology: Shenzhou Anfu's smart lock solutions offer advanced access control, providing secure and convenient locking systems for various applications.
5. Financial Payment Solutions:
- Secure Transactions: Our financial services benefit from Shenzhou Anfu's secure transaction processing, ensuring every financial interaction is protected against fraud and breaches.
6. Specialized Information Encryption Products:
- High-Level Encryption: Our specialized encryption products ensure that sensitive information remains confidential and secure, vital for our clients' peace of mind.
Research and Development Excellence
Shenzhou Anfu's commitment to research and development drives continuous innovation, resulting in:
- 14 Independent Intellectual Property Rights: Including 2 invention patents, 5 utility model patents, 4 design patents, and 9 software copyrights.
- AX200 Chip Series: Leading-edge technology that underpins our high-performance solutions.
Market Leadership and Global Impact
Shenzhou Anfu is recognized as a leader in security technology, serving key sectors such as:
- Security: Comprehensive solutions for protecting data and infrastructure.
- Banking and Finance: Ensuring secure financial services and transactions.
- E-Government: Protecting sensitive governmental data.
- Convenience Services: Enhancing the security of everyday digital services.
Our global reach and commitment to quality make us an ideal partner for enhancing all of our services.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
