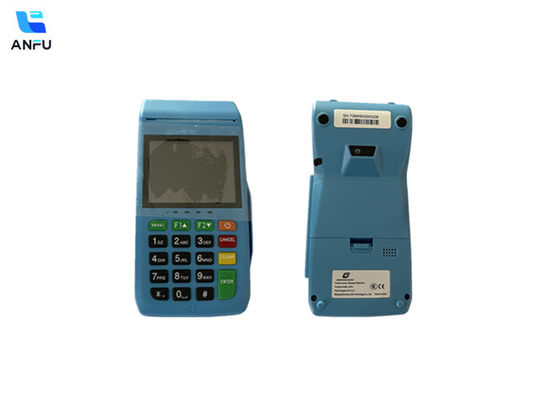

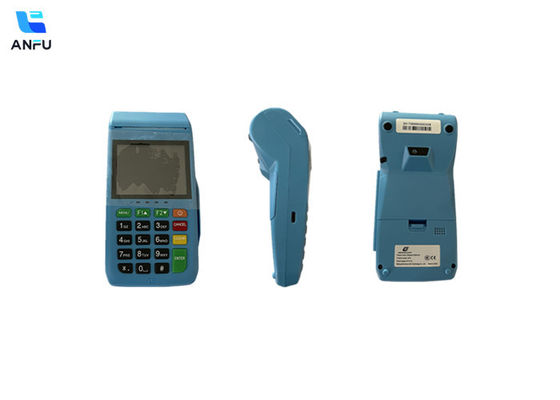

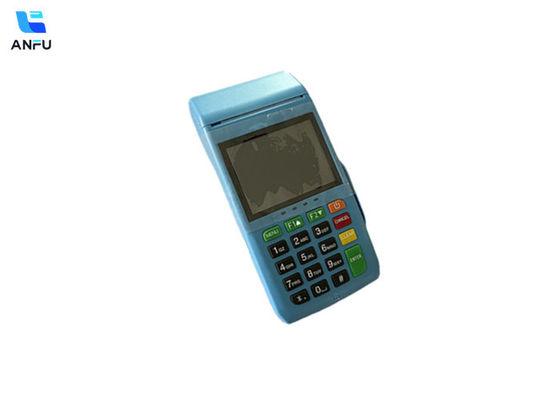

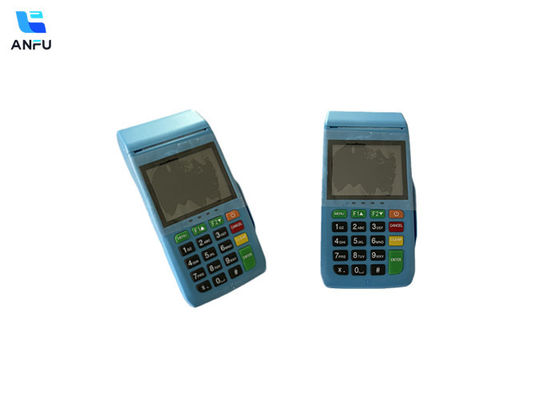

LINUX 2.8 inch NFC WIFI handheld pos terminal printer 58mm smart pos terminal support mastercard visa card swiping
Company Information
We are delighted to introduce you to Shenzhou Anfu, a trusted partner in our commitment to delivering exceptional security solutions. Understanding Shenzhou Anfu’s expertise and advanced technology will highlight how we ensure top-tier security in our products and services.
About Shenzhou Anfu
Shenzhou Anfu is a cutting-edge high-tech company based in Beijing, specializing in the design, development, and sales of security System on Chip (SOC) solutions and security terminal products. Their innovative approach and dedication to excellence make them an invaluable partner in securing digital interactions and devices.
Core Competencies
1. SOC Chips and Modules:
- Advanced Technology: Utilizing a 32-bit embedded high-performance CPU SOC chip design platform, Shenzhou Anfu develops powerful and versatile security solutions.
- Wide Applications: These SOC chips enhance security in various applications, from smart devices to secure transactions, ensuring comprehensive protection.
2. Security Terminal Products:
- Comprehensive Security: Shenzhou Anfu offers a diverse range of security terminal products designed to provide robust data protection and secure transaction processing.
Certifications and Quality Standards
Shenzhou Anfu’s commitment to quality and security is demonstrated by their numerous certifications:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- Software Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- Authorization from the State Password Administration for commercial password products
These certifications underscore their adherence to the highest standards of quality, security, and innovation.
Innovative Product Portfolio
Shenzhou Anfu’s products cater to a wide range of security needs, including:
- Intelligent Terminals: Enhancing the security and performance of smart devices.
- Security Protection Products: Providing advanced security mechanisms to protect data and devices.
- Smart Home Devices: Offering robust security for smart home applications.
- Smart Locks: Delivering state-of-the-art technology for secure access control.
- Financial Payment Solutions: Ensuring secure financial transactions and safeguarding against fraud.
- Specialized Information Encryption Products: Providing high-level encryption to protect sensitive information.
Research and Development
Innovation is at the heart of Shenzhou Anfu’s operations:
- Intellectual Property: They hold 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 design patents, and 9 software copyrights.
- Continuous Innovation: Their significant investment in R&D has led to the development of the AX200 chip series, showcasing their cutting-edge technology in security solutions.
Global Leadership and Impact
Shenzhou Anfu is recognized globally as a leader in security technology, serving key sectors such as:
- Security: Offering comprehensive security solutions.
- Banking and Finance: Ensuring secure financial transactions.
- E-Government: Protecting sensitive government data.
- Convenience Services: Enhancing the security of everyday digital services.
Their global reach and reliable products make them an essential partner in providing innovative and secure solutions.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
