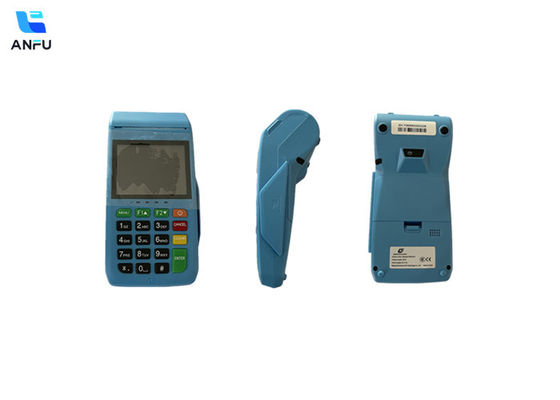

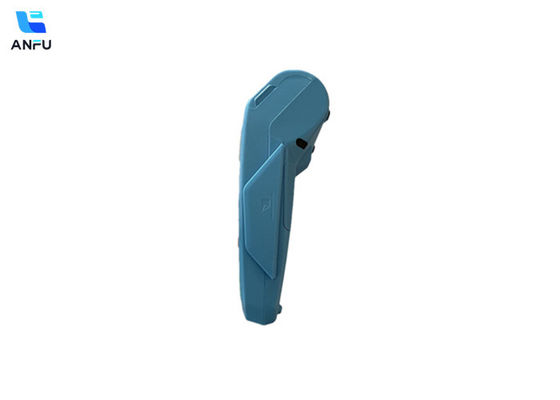

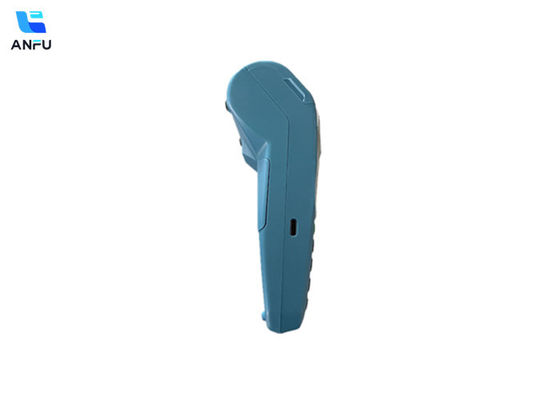

Magnetic card reader NFC portable pos handheld smart mobile payment pos terminal for shopping mall
Company Information
Welcome! I’m excited to introduce you to Shenzhou Anfu, a key partner in our mission to deliver top-notch security solutions. Understanding the capabilities and expertise of Shenzhou Anfu will give you insight into how we ensure the highest standards of security in our offerings.
About Shenzhou Anfu
Shenzhou Anfu is a high-tech company based in Beijing, specializing in the design, development, and sales of advanced security System on Chip (SOC) solutions and security terminal products. They are at the forefront of security technology, providing essential tools to protect and enhance digital interactions and devices.
Core Competencies
1. SOC Chips and Modules:
- Technology Platform: Shenzhou Anfu’s development platform is based on a 32-bit embedded high-performance CPU SOC chip design, creating versatile and powerful security solutions.
- Applications: These SOC chips are integral to enhancing security across various sectors, including smart devices and secure transactions.
2. Security Terminal Products:
- Product Range: Shenzhou Anfu offers a variety of security terminal products designed to ensure robust data protection and transaction security.
Certifications and Quality Standards
Shenzhou Anfu is committed to maintaining the highest quality standards, as evidenced by their certifications:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- Software Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- Authorized by the State Password Administration for commercial password products
These certifications reflect their dedication to quality, security, and innovation.
Innovative Product Portfolio
Shenzhou Anfu’s products are designed to meet diverse security needs, including:
- Intelligent Terminals: Enhancing the security and efficiency of smart devices.
- Security Protection Products: Providing advanced mechanisms to safeguard data and devices.
- Smart Home Devices: Ensuring robust security for smart home applications.
- Smart Locks: Delivering cutting-edge technology for secure access control.
- Financial Payment Solutions: Securing financial transactions and protecting against fraud.
- Specialized Information Encryption Products: Offering high-level encryption for sensitive information.
Research and Development
Shenzhou Anfu places a strong emphasis on research and development, leading to significant innovations:
- Intellectual Property: They hold 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 design patents, and 9 software copyrights.
- Continuous Innovation: Their commitment to R&D has led to the development of the AX200 chip series, reflecting their position at the cutting edge of security technology.
Global Leadership and Impact
Shenzhou Anfu is recognized as a leader in security technology, serving key sectors such as:
- Security: Providing comprehensive security solutions.
- Banking and Finance: Ensuring secure financial services and transactions.
- E-Government: Protecting sensitive government data.
- Convenience Services: Enhancing the security of everyday digital services.
Their global presence and impact make them an invaluable partner in providing innovative and reliable security solutions.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
