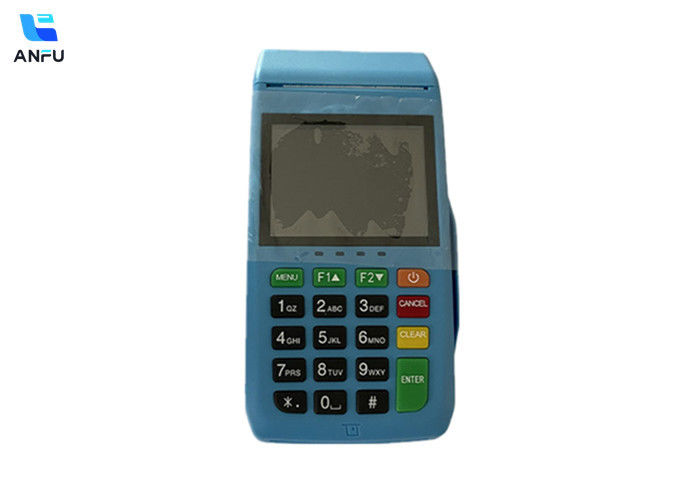

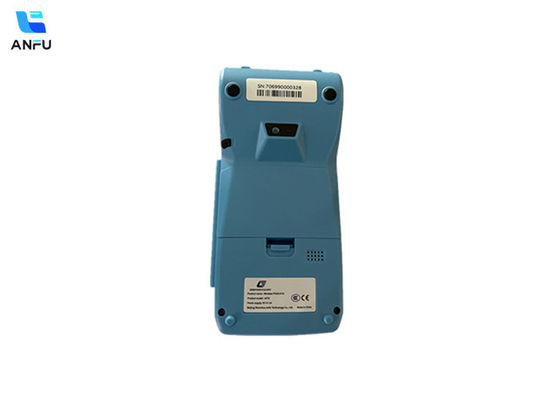

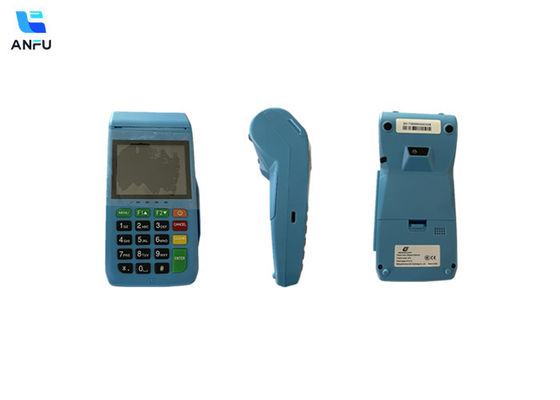

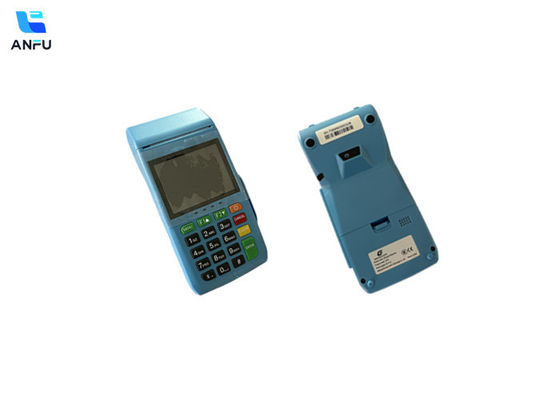

Shenzhou Anfu AF75 Restaurant Online Food Ordering Handheld Pos Terminal with thermal Printer
Company Information
We are pleased to introduce Beijing Shenzhou Anfu Technology Co., Ltd., a leading innovator in information security and financial technology since 2015. Serving clients across government, finance, energy, and transportation sectors, we offer comprehensive security solutions, advanced financial payment services, and robust system platforms.
Our product segments include:
- Financial Technology: Cutting-edge solutions for seamless financial transactions.
- Information Security: State-of-the-art products ensuring data protection and system integrity.
- System Platforms: Integrated platforms for efficient and reliable operations.
Shenzhou Anfu upholds the core values of "quality, efficiency, collaboration, and win-win," with a strong focus on independent innovation. We prioritize customer needs and experience, ensuring continuous optimization and innovation of our products. Rigorous quality control processes enable us to deliver superior, competitive services globally.
Our vision is to be a leading global provider of integrated information security and financial technology services. We are dedicated to building long-term partnerships and achieving mutual success with our clients worldwide.
We look forward to the opportunity to support your business with our tailored solutions.
Specification
| Operating System |
Linux 5.4
RTOS |
| Processor |
Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory |
Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers |
MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader |
13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera |
Rear camera:0.3 million pixels |
| Display |
2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication |
Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery |
emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer |
High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM |
SIM Card x 2 + PSAM X 1 |
| Positioning |
X |
| Keypad |
Numeric x 10
Function x 8
Power x 1 |
| Audio |
1 Buzzer |
| Ports |
Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights |
4 Work indicator lights |
| Adapter |
Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base |
X |
| Weight |
340g |
| Physical size |
177mm*81mm*56mm |
| Environment |
Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications |
EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display |
2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) |
802.11 a/b/g/n,2.4G |
| Mobile communication |
Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card |
Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card |
Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC |
Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
