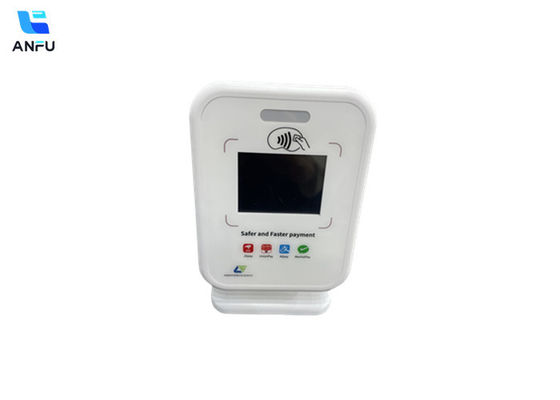

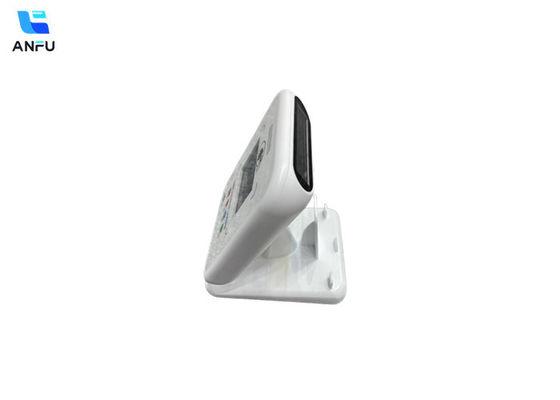

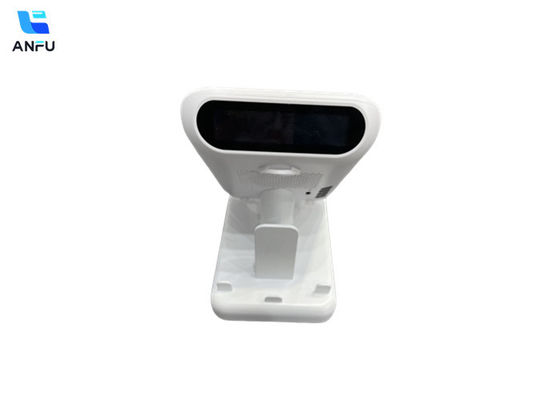

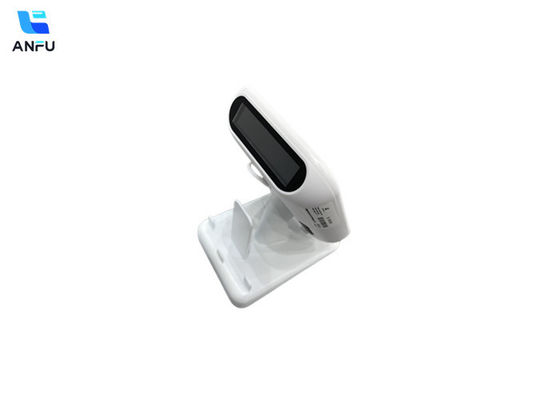

Dynamic QR Code Display Screen 4G/WI-FI Wireless Sound box for Payment Speaker
Parameters
|
Brand
|
Shenzhou Anfu
|
|
Part Number
|
QF100
|
|
Operating System
|
RTOS
|
|
Processor
|
RTOS:Cortex-R5 614MHz
|
|
Memory
|
4MB Flash + 4MB RAM
|
|
Display
|
2.4 inch color screen, resolution 240 * 320,displaying QR code
|
|
Wireless Communication
|
Wi-Fi® (2.4G)(Optional) | 4G(Cat-1)
|
|
Battery
|
lithium battery, 3.7V/2000mAh
|
|
Card Slots SIM / SAM
|
SIM Card x 1
|
|
Keypad
|
Power key,Volume key (+/-),Function key,Reset key(hole key)
|
|
Audio
|
4Ω/3W
|
|
Ports
|
1 Type-C | USB 2.0
|
|
Indicator lights
|
1 power indicator light, 1 message indicator light
|
|
Adapter
|
Input: AC 100-240V, 50/60Hz Output: 5V/1A
|
|
Segment Code Screen
|
6-digit display of amount (optional)
|
|
Weight
|
225g
|
|
Dimensions
|
Main body(95*144.5822mm), base(95"99*10.8mm)
|
|
Environment
|
Storage temperature: -20°C to 60°C Operating temperature: -10°C to 50°C
Humidity: ≤95%
|
|
Certifications
|
UPTS,CE,BIS
|
Key Attributes
In the era of scan code payment and mass entrepreneurship explosion, many small and micro payment collection scenarios require convenient and efficient payment reminder tools. QF100 cloud speaker is specially designed for the voice broadcast scene of scanning code collection, and supports Alipay, WeChat, UnionPay and other multi-channel scanning code payment voice broadcast. The product is based on 4G cat1 platform, with adjustable volume 3W loudspeaker, supports real-time payment information broadcast. Provide real-time account arrival information broadcast for small and micro payment scenarios. Cooperate with the cloud platform to support convenient functions such as the summary and broadcast of the amount of the day.
Product Advantages
Ø 4G Cat1 communication, messages arrive in seconds, optional WIFI communication.
Ø 3W loudspeaker, accurate expression in complex environment.
Ø Large-capacity battery with excellent standby power consumption, longer battery life.
Ø Built-in ESIM communication card, no need to insert a card, it can be used immediately after booting.
Ø Support desktop placement and vertical hanging.
Ø Optional two-dimensional code display, digital amount display function.
Ø Automatic upgrade, remote device management.
Real Case for Lower MOQ:
| Products Name |
MOQ(in the last 12month) |
| POS Device |
5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
